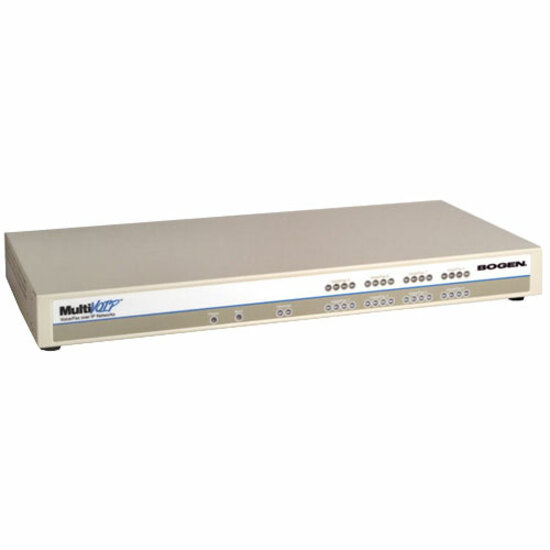

Bogen MVP810BG

Bogen VOIP Gateway - 8 analog ports, Ethernet, Single or multi-zone paging, FXS/FXO connectors, H.323/SIP protocols, Single Port Protocol, Voice compression, T.38 real-time fax relay, H.450 supplementary service support
Up to 8 analog ports for communication over an existing IP network or the Internet

Bogen's VOIP Gateway allows paging communications to be sent over the Internet or Intranet. FXS pass through expands the paging capabilities by providing a continuous connection between buildings using a Local or Wide Area Network. Equipment is easily managed locally using a Windows-based software or remotely with a web browser or SNMP. VOIP Gateway can also be used for toll-free voice or fax communications when connected to phones, fax machines, key systems, PSTN lines or a PBX to provide real-time, toll-quality voice connections to any office over a network. It utilizes the H.323 or SIP protocols to provide complete interoperability with other Internet telephony solutions.

General Information

Physical Characteristics

  • Height: 3.9"
  • Width: 17.5"
  • Depth: 8"
  • Weight (Approximate): 8 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Management Port: Yes

Management & Protocols

  • Voice Codec:
    • G.711
    • G.723
    • G.726
    • G.727
    • G.729
    • G.165
    • G.168

Other

  • Package Contents:
    • MVP810BG VoIP Gateway
    • DB9 to DB25 cable
    • MVP810BG VoIP Gateway
    • DB9 to DB25 cable
  • Additional Information: FXO, FXS & E&M support on each RJ-11 port

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • Network Standard: 10/100Base-TX

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)



The Bogen MVP810BG is also known as BOG-MVP810BG .
