Full specifications (PDF)
RMS Output Power:
4 W
Minimum Frequency Response:
110 Hz
Maximum Frequency Response:
15 kHz
Sensitivity:
96 dB
Speaker Size:
8"
Bogen MB8 Series Public Address Equipment Model Overview

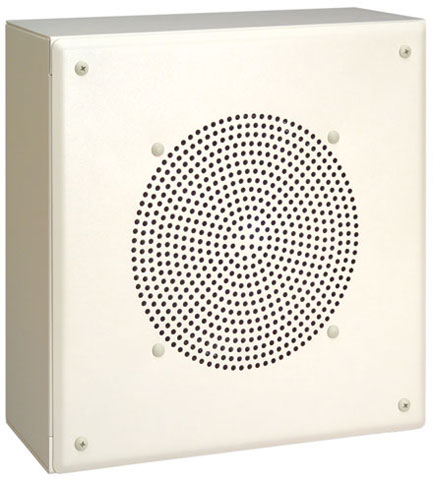

MB8 Series Metal Box Speakers is an all-steel surface-mounted enclosure with an 8" cone loudspeaker. The MB8 Series Metal Box Speakers also features a multi-tap 4 watt transformer. It is compatible with both 25V and 70V amplifier systems. It is suitable for ceiling or wall mounting and ships with mounting hardware such as toggle bolts, wood screws and wire crimps.
Bogen MB8TSL Public Address Equipment Overview
Bogen's MB8TSL speaker feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSL speaker is designed primarily for wall mounting, with front face angled downward by 12.5 degrees.
Technical Information
Physical Characteristics
Material:
- Steel Enclosure
- Metal Box
Form Factor:
Wall Mountable
Width:
12"
Depth:
12.4"
Length:
12.4"
Weight (Approximate):
9 lb
Miscellaneous
Package Contents:
- MB8TSL Speaker
- Toggle Bolts
- Wood Screws
- Wire Crimps
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0647367313123, 0765368370072, 0999561400919
UPC:
647367313123, 765368370072, 999561400919
EAN:
0647367313123, 0765368370072, 0999561400919
UNSPSC:
52161512
Questions? Get help from a
Printer Expert!
Printer Expert!
The Bogen MB8TSL Public Address Equipment is also known as
BOG-MB8TSL
