Bogen LUPCMALL Public Address Equipment

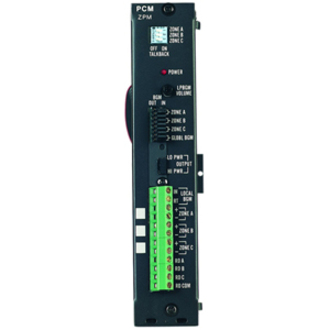

The Bogen PCMZPM Zone Paging Module is an essential addition to the PCM2000 Zone Paging System, delivering three separate zones of high-quality paging capabilities. Ideal for commercial environments, this robust module allows users to implement up to nine zones by stacking up to three PCMZPM units. Each zone enables customization with talkback options and background music integration. Configure for low-power or high-power operation based on your speaker setup, making it versatile for various audio requirements.
Key Features:

• Multi-Zone Control: Supports up to 9 zones with three PCMZPM modules.
• Talkback Functionality: Easy selection via DIP switches for each zone.
• Adjustable BGM Options: Connect or disconnect zones from the background music bus.
• Relay Driver Outputs: Activate external equipment or enhance power capacity.
• Flexible Operation: Select between low-power and high-power modes.

Specifications:

• Zones: 3 per module, up to 9 total with additional modules
• Output Type: Low-Power or High-Power configuration
• Talkback Module: Requires PCMTBM module (one per system)
• BGM Inputs: Local and global music source compatibility
• Relay Driver Capacity: Up to 100 mA per driver
• Power Supply for Relay: 12V DC or less
• Speaker Connections: ZONE A, ZONE B, ZONE C with + and - terminals
