Full specifications (PDF)
Minimum Frequency Response:
350 Hz
Maximum Frequency Response:
12 kHz
Impedance:
8 Ohm
Sound Pressure Level:
120 dB

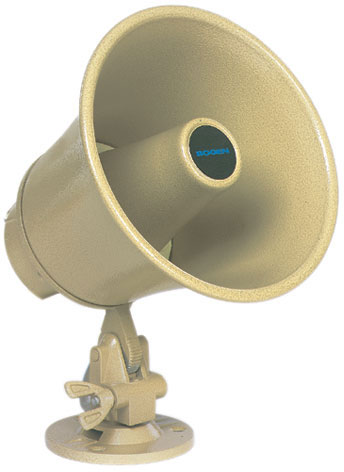

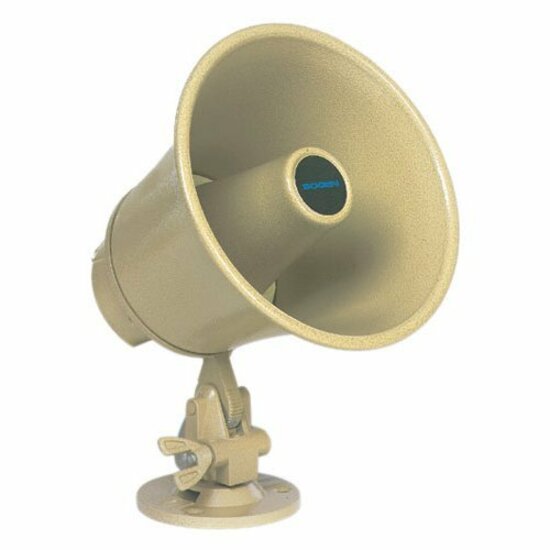

Bogen IH8A Public Address Equipment Model Overview
The double reentrant, horn-type loudspeaker from Bogen, IH8A Loudspeaker, with its high intelligibility and efficiency, is designed for paging applications. Its all-metal, textured, mocha, weatherproof construction makes it equally well suited for indoor and outdoor applications. A detachable mounting bracket provides precise positioning of the horn in the vertical and horizontal planes. A 12" connecting cable is also supplied for easy installation.
Bogen IH8A Public Address Equipment Overview
The Bogen Model IH8A is a double reentrant horn-type loudspeaker designed for paging applications. Excellent intelligibility, handsome compact styling, and all metal, weatherproof construction make the model IH8A perfect for use indoors or outdoors with Bogen sound equipment.
Technical Information
Physical Characteristics
Width:
7"
Depth:
6"
Diameter:
6.3"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
- H8A Reentrant Horn Loudspeaker
- 12" Connecting Cable
Additional Information:
- Power Rating: 15 Watts
- Dispersion: 130°
- Weatherproof, all metal construction
Item Numbers
GTIN:
0765368360172
UPC:
765368360172
EAN:
0765368360172
UNSPSC:
52161512
