Bogen HFCS1B Telecommunication Equipment

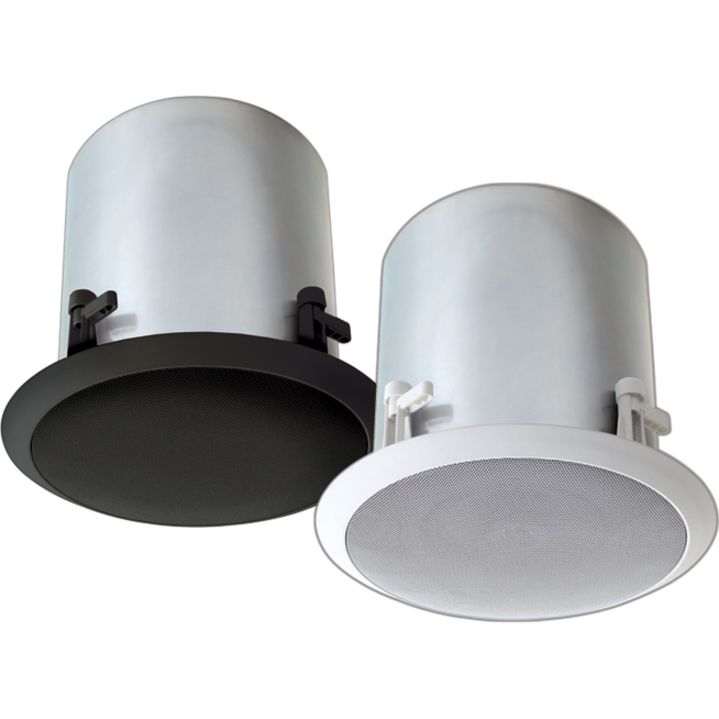

Bogen - Bogen HFCS1B 2-way Ceiling Mountable Speaker - 32 W RMS - Black - 65 Hz to 19 kHz - 16 Ohm
  • The 2-way Ceiling Mountable speakers provide the finest sound coverage
  • Handles up to 32 W of RMS power
  • Listen to deep lows and euphoric highs with a frequency range of sound from 65 Hz-19 kHz
  • 16 Ohm impedance extracts maximum power so you will get more output from your speakers
Read More

Need a different version? See all Bogen Parts Public Address Equipments

$144.05
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Bogen HFCS1B Telecommunication Equipment
Bogen HFCS1B Telecommunication Equipment
Bogen Parts Public Address Equipment Model Overview
Products and parts from Bogen.
Bogen HFCS1B Telecommunication Equipment Overview

The Bogen HFCS1(B) and HFCS1LP(B) ceiling loudspeakers deliver superior sound and clear intelligibility in a variety of ceiling environments.

The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions.

Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement.

Technical Information
Crossover Type:
2-way
Cable Length:
10 ft
RMS Output Power:
32 W
PMPO Output Power:
75 W
Driver Type:
  • 6.50" Polypropylene Woofer
  • 0.75" Polycarbonate Tweeter
Minimum Frequency Response:
65 Hz
Maximum Frequency Response:
19 kHz
Impedance:
16 Ohm
Sound Pressure Level:
89 dB
Sensitivity:
89 dB
Physical Characteristics
Color:
Black
Material:
  • Steel
  • Rubber
  • Acrylonitrile Butadiene Styrene (ABS)
Form Factor:
Ceiling Mountable
Depth:
12"
Diameter:
12.3"
Weight (Approximate):
9 lb
Miscellaneous
Package Contents:
  • High-Fidelity Ceiling Speaker
  • Input Terminal Cover
  • 4 x Screws
  • 1 x Plug-in Input Connector
Certifications & Standards:
  • UL-2043
  • UL 60065
  • 94VO
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 52161512
