Bogen GA6A Public Address Equipment

The Bogen GA6A Public Address Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bogen GA6A - Bogen GA6A General Purpose Amplifier - 1% THD - 16 W
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

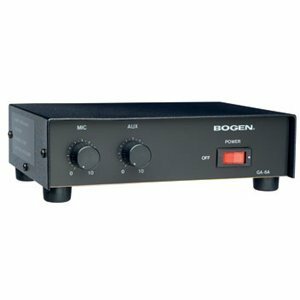

Bogen GA6A Public Address Equipment Model Overview
The GA6A Amplifier is a rugged six-watt, dual-input audio amplifier with a wide variety of smaller applications including background music, relaying communication from one room to another, or sound reinforcement. The GA6A Amplifier delivers rated power at not more than 1% total harmonic distortion from 75-15,000 Hz into transformer-coupled or direct low-impedance loads. Inputs for a low-impedance balanced dynamic microphone and an auxiliary audio source (tuner, tape deck, etc.) can be mixed. Individual front-panel controls regulate the level of each input. Connections for 8-ohm and 25V or 70V speaker lines are provided on the rear panel output terminal strip. A 3-position switch is supplied to provide +9 dB boost, -9 dB cut at 10 kHz or flat response.
Bogen GA6A Public Address Equipment Overview

Bogen Model GA6A is a rugged and compact six-watt, dual-input amplifier with a wide variety of applications such as background music in a doctor's waiting room, relaying fast-food restaurant orders from counter to kitchen, or sound reinforcement in a small church.

The GA6A delivers rated power at not more than 1% total harmonic distortion from 75Hz to 15kHz into matched loads. A low-impedance balanced or unbalanced microphone input and wide-frequency auxiliary input are provided, with built-in mixing and individual front-panel controls. The unit is protected by both thermal and over-current circuit breakers.

Technical Information
Total Harmonic Distortion (THD):
1%
Features:
  • Thermal Overload Cutoff
  • Overcurrent Protection
Audio
RMS Output Power:
6 W
Equalizer Modes:
Treble
Power Description
Input Voltage:
120 V AC
Frequency:
60 Hz
Operating Power Consumption:
16 W
Physical Characteristics
Height:
2.6"
Width:
8.5"
Depth:
6"
Weight (Approximate):
5 lb
Miscellaneous
Additional Information:

Features:

  • Two individual controls: Lo-Z balanced or unbalanced MIC, AUX
  • Internally adjustable tone control
  • Built-in mixing
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0765368330571
UPC: 765368330571
EAN: 0765368330571
UNSPSC: 52161547
