Full specifications (PDF)
Frequency Band/Bandwidth:
87.50 MHz to 108.50 MHz FM
Bogen FMR Public Address Equipment
Part Number:
FMR
Model:
FMR Tuner
Bogen FMR Tuner Public Address Equipment Model Overview

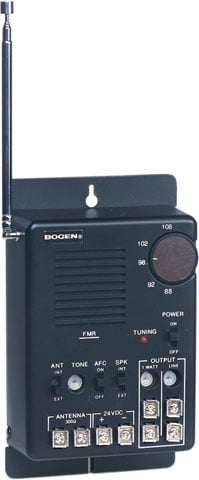

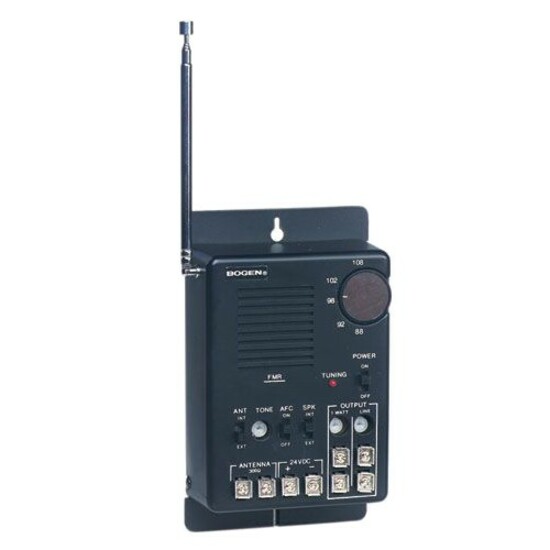

The Bogen Model FMR FM Radio/Receiver is a cost-effective solution for delivering quality background music in various settings, whether for paging systems or music-on-hold applications. With its compact wall-mount design and optional external antenna connection, this receiver is ideal for both commercial and personal use. It boasts a built-in speaker for easy tuning and features Automatic Frequency Control (AFC) to ensure stable sound without signal drift. The unit also accommodates both 1-watt and line-level outputs, making it versatile for different audio setups.
Key features:
Specifications:
Key features:
- Economical background music and music-on-hold source
- 1-watt output for M-O-H or line output for background music
- Automatic frequency control (AFC) prevents signal drift
- Wall-mount design for space-saving installation
- Includes a built-in speaker and LED signal indicator
- Screwdriver-adjustable tone control and output volume
Specifications:
- Tuning Range: 87.5MHz to 108.5MHz
- FM Sensitivity: 8mV
- Frequency Response: 90Hz to 16kHz ±2dB
- Power Output: 1-watt @ 8-ohms; 100mW (Line Out)
- Signal-to-Noise Ratio: -65dB
- Distortion: Less than 2% at rated power output
- Power Requirements: 12V DC or 24V DC; 250mA
- Dimensions: 3-3/8"W x 6"H x 1-1/2"D
Bogen FMR Public Address Equipment Overview
The Bogen FMR is an economical FM radio/receiver especially designed to provide background music over a paging system, or supply music on-hold to a telephone system. The unit has 1-watt and line-level outputs to facilitate connection to a variety of paging/telephone systems including an amplified speaker.
Technical Information
Controls/Indicators
Indicators & Controls:
- Tone Control
- Output Volume Control
Power Description
Input Voltage:
- 12 V DC
- 24 V DC
Power Source:
DC Power
Physical Characteristics
Height:
6"
Width:
3.4"
Depth:
1.5"
Miscellaneous
Package Contents:
- FMR FM Radio
- Flanges for Wall Mount
Additional Information:
- FM Sensitivity: 8 mV
- Frequency Response: 90 Hz to 16 kHz ±2dB
- Power Output: 1 Watt @ 8 Ohms
- Signal to Noise Ratio: -65 dB
- Distortion: Less than 2% at rated power output
- Automatic Frequency Control
Item Numbers
GTIN:
0765368200096
UPC:
765368200096
EAN:
0765368200096
UNSPSC:
43201555
