Bogen FG15W Public Address Equipment

Part Number: FG15W
Model: FG15

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Crossover Type
2-way
RMS Output Power
15 W
Minimum Frequency Response
100 Hz
Maximum Frequency Response
20 kHz

Product Description:

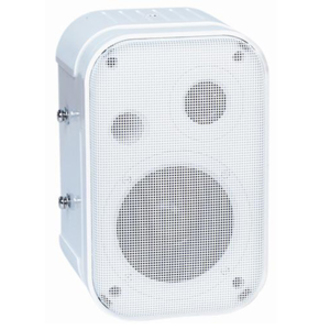

  Bogen FG15 2-way Speaker - 15 W RMS - White - 8 Ohm

Bogen FG15 Public Address Equipment Model Overview

The FG-Series of speakers offers exceptional sound quality in a compact design, making them perfect for both foreground and background music applications. Available in three sizes – FG15B, FG15W, and FG20S – these rugged 2-way speakers employ a woofer and tweeter configuration to ensure a smooth and wide frequency response. With features like splashproof technology on the FG20S model, stainless steel hardware, and compatibility with both 70V and 8-ohm systems, these speakers are engineered for durability and high performance, ensuring the best audio experience whether indoors or outdoors.
Key Features:
  • Power Models: 15, 20, and 30-watt options
  • Wide Frequency Response: Smooth audio throughout
  • Compact Design: Rugged plastic cabinets
  • Mounting Bracket: Included for easy installation
  • Splashproof: Ideal for damp environments (FG20S only)

Specifications:
  • Models: FG15B (Black), FG15W (White), FG20S
  • Power Capacity: 15W (FG15), 20W (FG20), 30W (FG30)
  • Frequency Response:
    • FG15: 100 Hz - 20 kHz
    • FG20: 80 Hz - 20 kHz
    • FG30: 80 Hz - 20 kHz
  • Sensitivity:
    • FG15: 86 dBspl @ 1W
    • FG20: 84 dBspl @ 1W
    • FG30: 86 dBspl @ 1W
  • Drivers:
    • FG15: 3" Paper (Low), 3/4" Mylar (High)
    • FG20: 5" Plastic (Low), 3/4" Mylar (High)
    • FG30: 5" Paper (Low), 3/4" Mylar (High)
  • Dimensions:
    • FG15: 7-1/4" x 4-5/8" x 5"
    • FG20: 9-1/8" x 6-1/4" x 7"
    • FG30: 9" x 5-7/8" x 5-5/8"
  • Shipping Weight:
    • FG15: 4 lb.
    • FG20: 6 lb.
    • FG30: 6 lb.
Bogen FG15W Public Address Equipment Overview

The Bogen FG15 of background and foreground speakers is designed to complement more sophisticated music systems. Their wide bandwidth provides the performance demanded by customers while their quality construction provides the reliability installer's can count on.

Technical Information
Crossover Type:
2-way
RMS Output Power:
15 W
Minimum Frequency Response:
100 Hz
Maximum Frequency Response:
20 kHz
Impedance:
8 Ohm
Sound Pressure Level:
86 dB
Physical Characteristics
Product Color:
White
Product Material:
Plastic
Form Factor:
In-ceiling
Height:
7.3"
Width:
4.6"
Depth:
5"
Weight (Approximate):
4 lb
Miscellaneous
Package Contents:
  • FG15 Speaker
  • Mounting Brackets
Additional Information:
  • Smooth, wide frequency response for music or voice
  • Individually sweep-tone tested to ensure reliability
  • Taps: 1, 2, 4, 7.5, 15 watts/switch selected
  • Connections: Screw terminals
Item Numbers
GTIN: 0765368480238, 0807320354413
UPC: 765368480238, 807320354413
EAN: 0765368480238, 0807320354413
UNSPSC: 52161512
