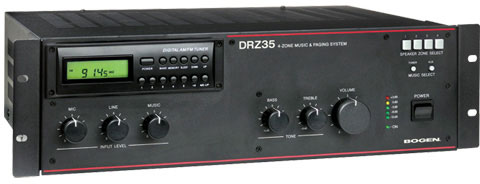

Bogen DRZ35 - Receiver (AM/FM, 35W 4-Zone)
Built-in AM/FM tuner, PLL-synthesized tuning for drift-free operation

The Bogen DRZ35 is a unique, self-contained 4-zone music and paging system for small- to medium-sized applications. It combines a digital AM/FM tuner with MIC, LINE, and AUX inputs. It has a 35-watt amplifier capable of driving 4-ohm speaker systems as well as 25- or 70-volt distributed systems.

General Information

Technical Information

  • Maximum Frequency Response: 1 kHz
  • Total Harmonic Distortion (THD): 1%
  • Multizone: Yes
  • Impedance: 4 Ohm

Physical Characteristics

  • Height: 5.3"
  • Width: 17"
  • Depth: 13.6"
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • Number of Analog Audio Inputs: 3

Other

  • Package Contents:
    • DRZ35 AM/FM Receiver
    • Brackets
    • FM Dipole Antenna
    • AM Loop Antenna
    • DRZ35 AM/FM Receiver
    • Brackets
    • FM Dipole Antenna
    • AM Loop Antenna
  • Certifications & Standards:
    • UL
    • FCC

Tuner

  • Frequency Band:
    • AM
    • FM
  • Station Presets:
    • 10 - FM
    • 10 - AM

Power Description

  • Operating Power Consumption: 98 W
  • Frequency: 60 Hz
  • Input Voltage: 110 V AC

Audio

  • Audio Channels: 1
  • RMS Output Power: 35 W

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)
