Minimum Frequency Response:
80 Hz
Maximum Frequency Response:
16 kHz
Impedance:
8 Ohm
Multizone:
Yes
Bogen Parts Public Address Equipment Model Overview
Products and parts from Bogen.

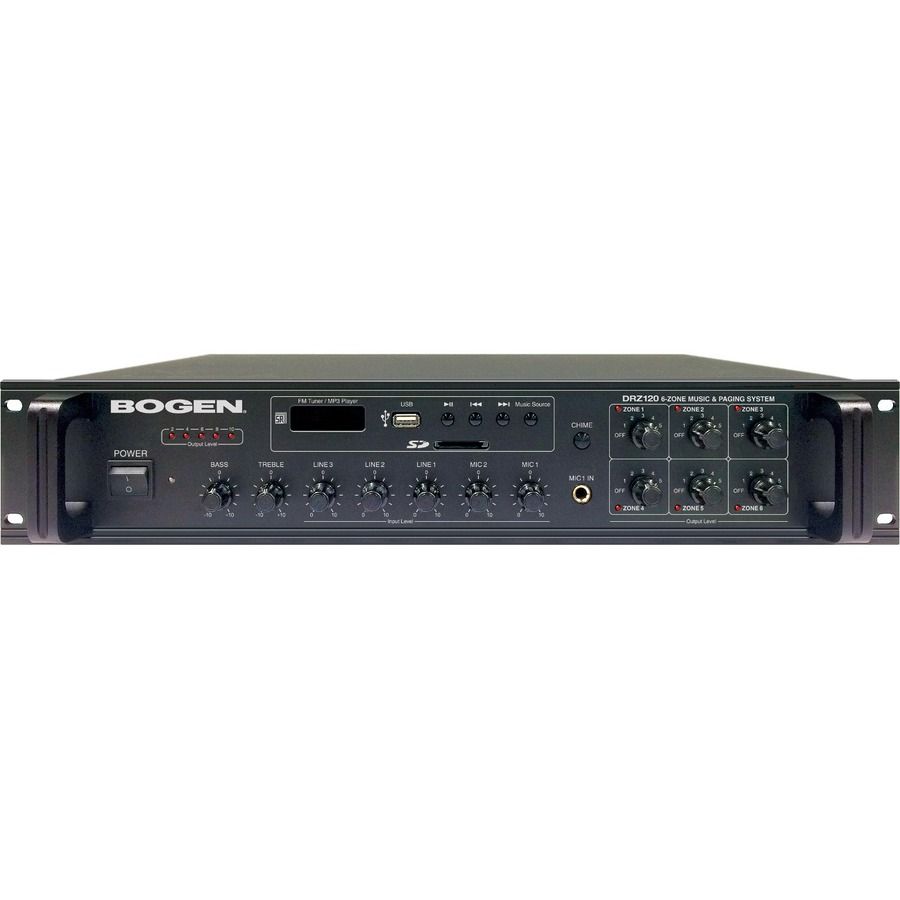

Bogen DRZ120 Telecommunication Equipment Overview
The Bogen DRZ120 is a unique, self-contained 6-zone music and paging system for small- to medium-sized applications. It combines a digital FM tuner / MP3 player with seven (7) MIC & LINE inputs. It has a 120-watt amplifier capable of driving 4-16 ohm or 70-volt speaker systems.
The DRZ120 permits connection of up to six individual paging and music zones. The DRZ120 also features Bass and Treble controls and a 5-segment LED output signal level indicator. The built-in FM tuner uses a PLL synthesizer to provide accurate frequency selection. MP3 audio can be played from files (.mp3 & .wav) accessed via the USB or SD card slots on the front panel.
The MIC1 Input can be set for VOX-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs.
Technical Information
Audio
RMS Output Power:
120 W
Tuner
Frequency Band:
FM
Interfaces/Ports
USB:
Yes
Number of Analog Audio Inputs:
6
Power Description
Operating Power Consumption:
250 W
Physical Characteristics
Product Color:
Black
Height:
3.5"
Width:
19.1"
Depth:
13.8"
Weight (Approximate):
25.20 lb
Miscellaneous
Package Contents:
- DRZ120 Amplifier
- 21-Button Remote Control
- 5 ft. Male-to-Male RCA Phono Cables
- 5 ft. 75-Ohm Wire FM Antenna
- 2 x 3-Terminal Pluggable Euro-Block Connectors
- 4 x Rubber Feet/Stand-offs with mounting screws
Item Numbers
GTIN:
0765368482775
UPC:
765368482775
EAN:
0765368482775
UNSPSC:
52161547
