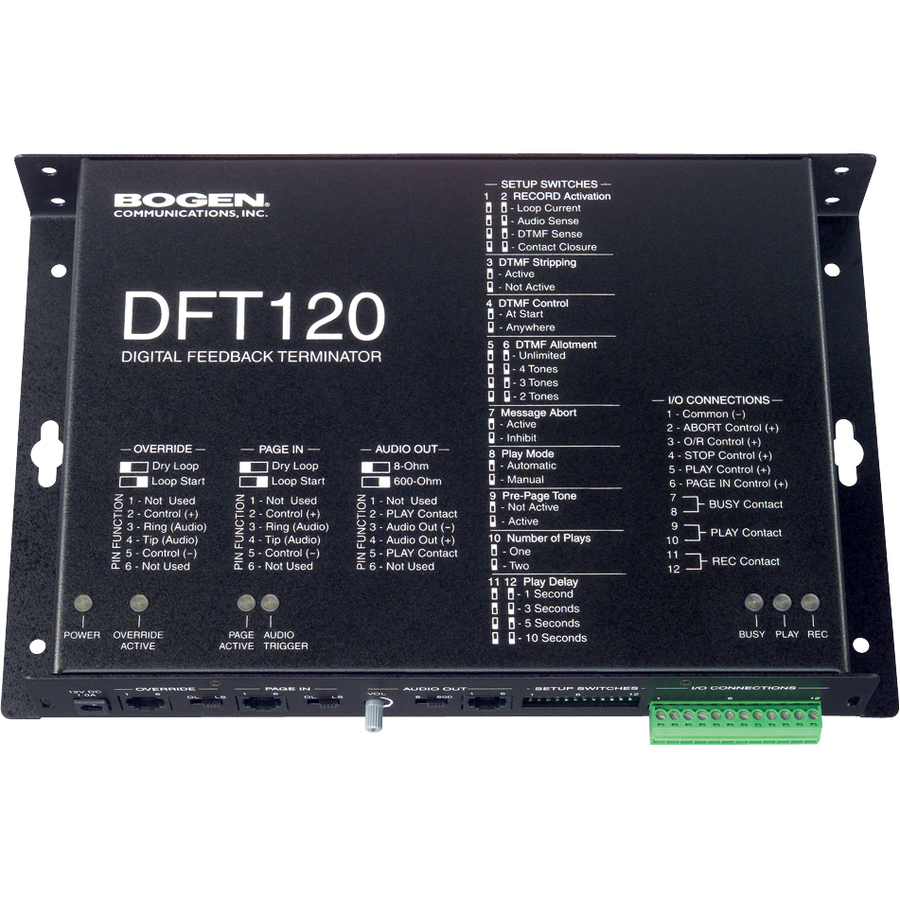

Bogen DFT120 Public Address Equipment Model Overview
The Bogen DFT120 Digital Feedback Terminator is an essential solution for clear audio communication. With 120 seconds of recording capacity and the ability to capture multiple messages simultaneously, it effectively eliminates the acoustic feedback loop between telephone handsets and paging systems. Ideal for high-capacity paging, this versatile unit supports dry loop or loop start inputs, making it compatible with a wide range of equipment. The DFT120 enhances playback quality through a high sampling rate and offers flexible operational modes, ensuring seamless and dynamic audio management.
Key Features
120 Seconds of total audio memory.
Record while playing back other messages.
Stack up to 8 messages for playback.
Loop start or dry loop input modes.
High sampling rate for excellent audio quality.
Adjustable delay before message repetition.
Pre-page tone feature.
Automatic or externally controlled operation.
Specifications
Audio Memory Capacity: 120 Seconds
Maximum Message Length: 30 Seconds
Message Stacking Capacity: 8 Messages
Frequency Response: 100Hz to 6.8KHz +/-3dB
Distortion: < 1.0% (THD max.)
Signal-to-Noise Ratio: 60 dBr
Audio Input: Loop start trunk or 4-wire dry loop
Audio Output: 8 ohms / 0.125W or 600 ohms / +4dBm
Power Consumption: 24VDC, 1A
Dimensions: 10"W x 1.5"H x 6.5"D
Shipping Weight: 6 lbs.

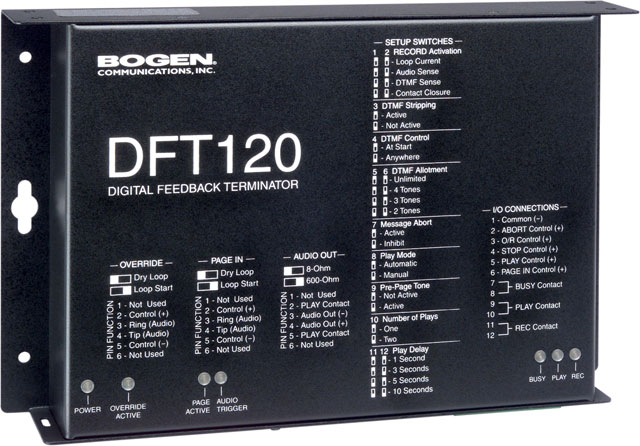

Bogen DFT120 Public Address Equipment Overview
The Bogen DFT120 Digital Feedback Terminator provides high quality recording and playback of audio pages. The DFT120 breaks the acoustical feedback loop created by the telephone handset and paging speaker. The page is first recorded and then played back as soon as the source handset has been put on-hook. High capacity paging is accomplished by the DFT120?s record during playback and page stacking capabilities. User selectable loop start trunk or 4 wire dry loop input interface and selectable 8-ohm or 600-ohm output impedances allow the DFT120 to directly connect to a wide range of customer premise equipment.
The Bogen DFT120 Public Address Equipment is also known as
BOG-DFT120
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
