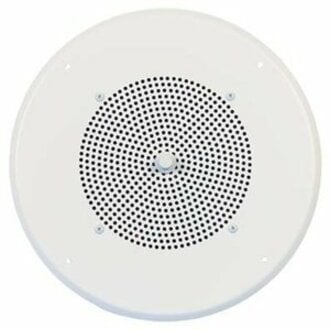

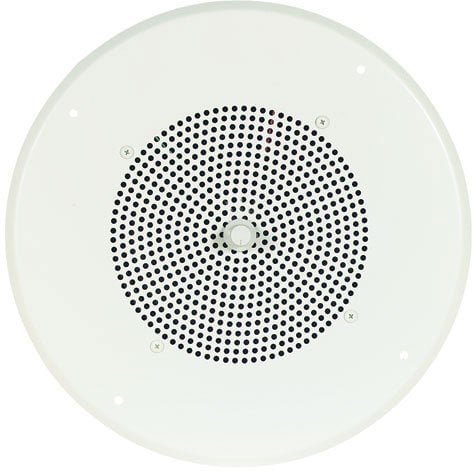

Bogen CS1EZ Public Address Equipment Model Overview
The Bogen Easy Design® CS1EZ Ceiling Speaker combines impeccable audio quality with user-friendly installation features. Engineered for 70V amplifier systems, this pre-assembled 1-watt speaker delivers crisp sound through its robust 8" cone speaker, all housed within a sleek 13" diameter steel grille finished in semi-gloss white enamel. The convenient rear-mounted screw terminal connections allow for rapid setup, while the integrated volume control knob on the faceplate ensures effortless sound adjustments. Whether for professional or home audio applications, the CS1EZ is designed for efficiency and superior performance.
Key Features
1W single-tap design for simplicity and efficiency
Screw terminal connections for quick and easy installation
Compatible with 70V amplifier outputs for versatile use
8" cone speaker for excellent audio quality
Heavy-duty, wire-wound volume control knob for easy sound management
Pre-assembled for faster installation
Tile bridge (Model TB8) available (sold separately) to support the speaker weight
Specifications
Power Rating (RMS): 1 watt continuous
Frequency Response: 50 Hz to 12 kHz
Impedance: 4900 ohms (for use on 70V amplifier outputs)
Sound Pressure Level: 95 dB @ 4 ft. with a 1-watt input on axis
Dimensions: 13" Dia. X 3-1/4" D
Product Weight: 3 lb.
Finish: Semi-gloss white enamel
Bogen CS1EZ Public Address Equipment Overview
The Bogen CS1EZ is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier systems. Comprised of an 8" cone speaker and 13" diameter steel ceiling grille finished with white enamel, the CS1EZ includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control knob is located on the faceplate.
The Bogen CS1EZ Public Address Equipment is also known as
BOG-CS1EZ
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
