Maximum Frequency Response:
1 kHz
Impedance:
8 Ohm
Bogen Parts Public Address Equipment Model Overview
Products and parts from Bogen.

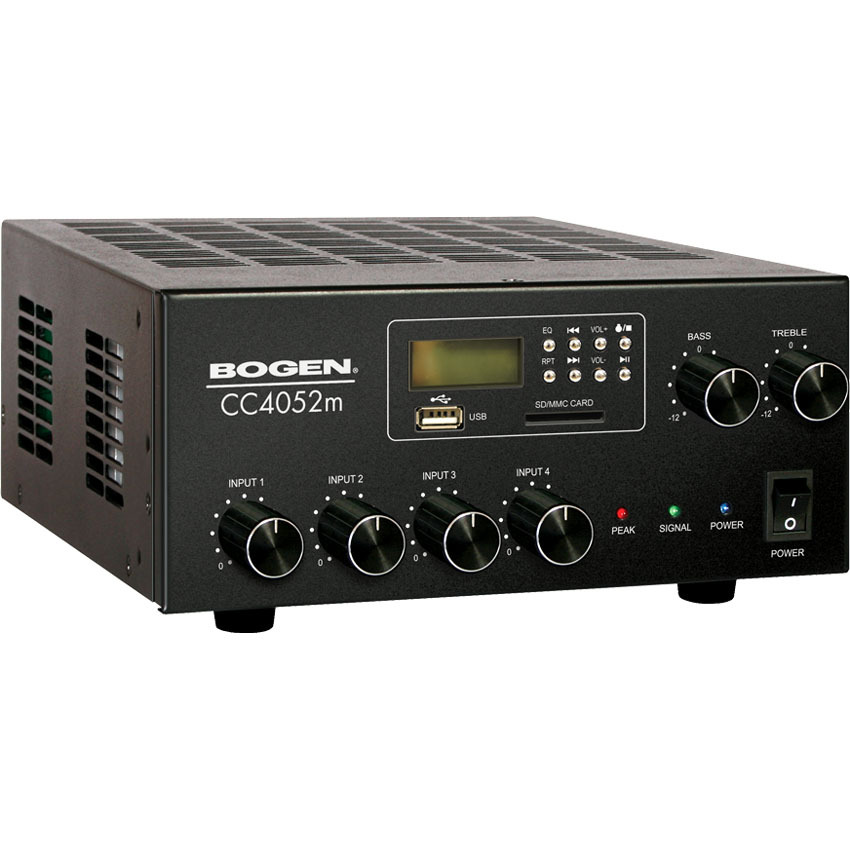

Bogen CC4052M Accessory Overview
These compact mixer-amplifiers provide 40 watts of output power and 5 inputs: 3 balanced MIC/Line, 1 unbalanced AUX, and 1 TEL, each with individual volume controls. Features include 2 audioactivated priority muting levels (Input 1 can be disabled), individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output. Model CC4052m also has a built-in MP3 Player (acting as a 6th Input), MOH Output with 1W/8?, and 600? transformer-balanced outputs.
They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack spaces in height, but are only 8-1/4" wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside configurations.
They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack spaces in height, but are only 8-1/4" wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside configurations.
Technical Information
Audio
RMS Output Power:
40 W
Interfaces/Ports
USB:
Yes
Number of Analog Audio Inputs:
2
Power Description
Input Voltage:
- 110 V AC
- 24 V DC
Frequency:
60 Hz
Physical Characteristics
Height:
3.5"
Width:
8.3"
Depth:
10.4"
Weight (Approximate):
11 lb
Miscellaneous
Certifications & Standards:
UL
Item Numbers
GTIN:
0765368482102
UPC:
765368482102
EAN:
0765368482102
UNSPSC:
52161547
Get help from a Barcoding Expert!
The Bogen CC4052M Accessory is also known as
BOG-CC4052M
