Bogen CC4021 Public Address Equipment

Part Number: CC4021
Model: Parts
$182.27
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Maximum Frequency Response
1 kHz
Impedance
8 Ohm
Audio Channels
2
RMS Output Power
40 W

Product Description:

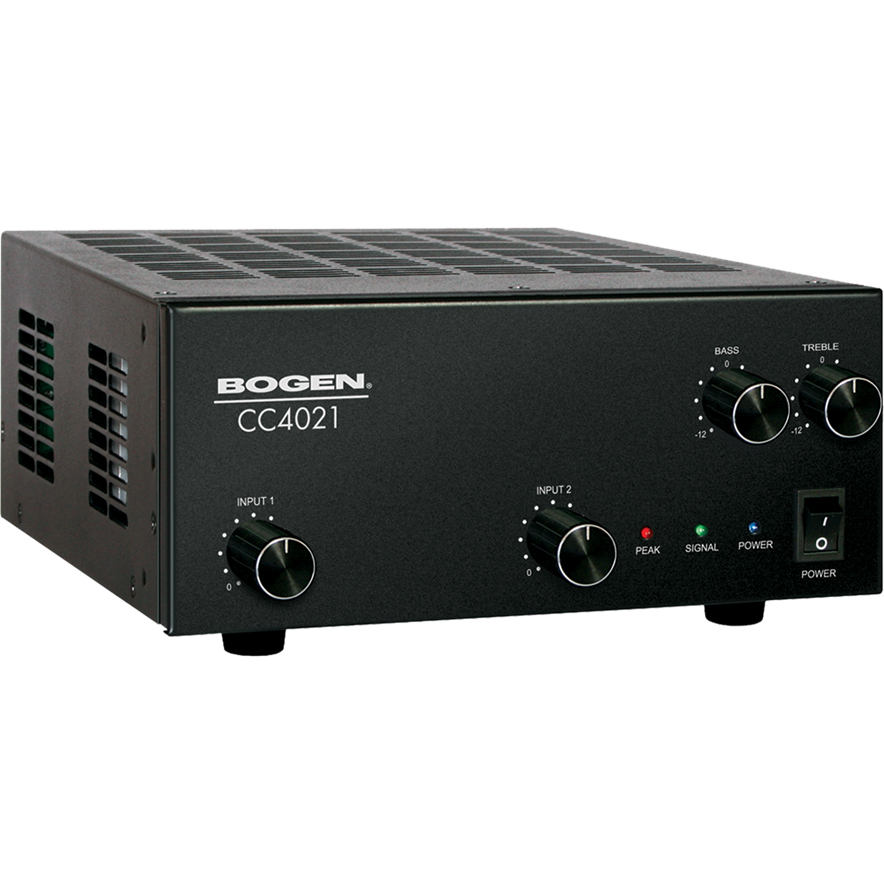

  Bogen CC4021 Amplifier - 40 W RMS - 2 Channel - 1 kHz

Bogen Parts Public Address Equipment Model Overview

Products and parts from Bogen.
Bogen CC4021 Public Address Equipment Overview

These compact mixer-amplifiers provide 40 watts of output power. Model CC4021 has two inputs: 1 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Model CC4041 has 4 inputs: 3 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Features include priority muting which can be disabled, individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output.

They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack spaces in height, but are only 8-1/4" wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside configurations.

Technical Information
Maximum Frequency Response:
1 kHz
Impedance:
8 Ohm
Audio
Audio Channels:
2
RMS Output Power:
40 W
Equalizer Modes:
  • Bass
  • Treble
Interfaces/Ports
Number of Analog Audio Inputs:
2
Power Description
Input Voltage:
  • 18 V DC
  • 12 V DC
Physical Characteristics
Height:
3.5"
Width:
8.3"
Depth:
10.4"
Weight (Approximate):
10 lb
Miscellaneous
Package Contents:
  • CC4021 Amplifier
  • 3A External Supply Input
Certifications & Standards:
UL Listed
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0765368482072
UPC: 765368482072
EAN: 0765368482072
UNSPSC: 52161547
The Bogen CC4021 Public Address Equipment is also known as BOG-CC4021
