Full specifications (PDF)
Microphone:
Yes
Auxiliary Input:
Yes
Bogen CAM8PRO Public Address Equipment
Part Number:
CAM8PRO
Model:
CAM8 Mixer

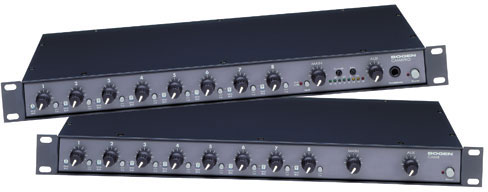

Bogen CAM8 Mixer Public Address Equipment Model Overview
The CAM8-Series Mixers deliver exceptional studio-quality sound and dual-bus flexibility within a compact and cost-effective design. Ideal for both studio and field applications, the CAM8 offers a straightforward 8-input, 2-channel mixer, while the CAM8PRO enhances your setup with a built-in Compressor/Limiter, adjustable threshold and ratio controls, and a multifunctional LED output meter. With its solid engineering and reliable performance, Bogen's CAM8 Series ensures that you can navigate any audio environment, providing you with years of trouble-free operation.
Key Features
Specifications
Key Features
- 8x2 MIC/Line Mixer
- Dual Bus Design - Independent Main and Auxiliary busses
- Phantom Power - Switchable +15V DC
- Immersive Sound Control - Input Gain/Trim Control with Low-Cut Filter
- CAM8PRO Enhancements - Compressor/Limiter with Threshold and Ratio Controls
- Multi-Function LED Output Meter - Peak or Average output display
Specifications
- Dimensions: 19" W x 6" D x 1-3/4" H
- Signal-to-Noise Ratio: 90 dB
- Max. Voltage Gain: 96 dB
- Frequency Response: 20 Hz to 20 kHz ± 1 dB
- Crosstalk (Adjacent Channels): > -90 dB
- Input Gain/Trim Range: 40 dB
- Low-Cut Filter: 12 dB/octave at 150 Hz
- Internal Adjustments: For built-in features

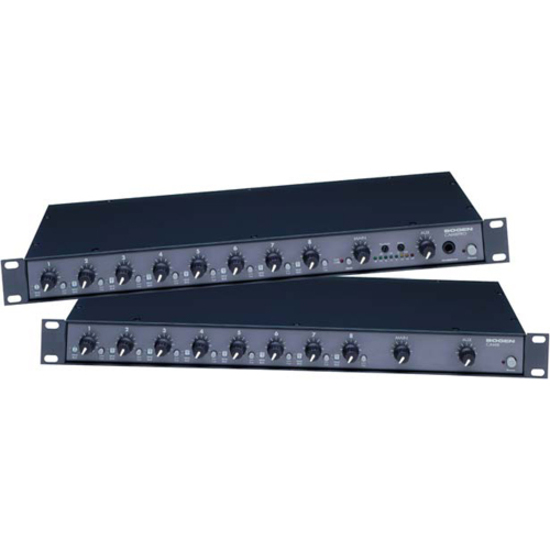

Bogen CAM8PRO Public Address Equipment Overview
The Bogen CAM8 and CAM8PRO are 8-input, dual-bus MIC/Line mixers that combine superb performance with a generous array of simple-to-use features in a single-rack space design. Both models feature 8 independently assignable inputs switchable between MIC and Line. Each input has a trim control, a switchable low-cut filter, and a Main/Auxiliary bus output selector. An additional Auxiliary input can be routed to the Main output,AUX output, or both by setting internal jumpers. Phantom Power is provided for condenser microphones.
Interfaces/Ports
Power Description
Input Voltage:
- 17 V AC
- 120 V AC
Physical Characteristics
Height:
1.8"
Width:
19"
Depth:
6"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
- 8 x Independently assignable inputs
- Dual-bus design with Main/AUX output selector for each input
- Pluggable terminal strip connections
- Separate Auxiliary input
- Balanced inputs and outputs
- Direct bus connection for cascading multiple mixers
- MIC/Line switch for each input and Main output
- Gain/Trim Control for each input
- Low Cut Filter for each input
- Switchable Phantom Power for condenser MIC inputs
- Input Level Control knob for each input
- Output Level Control knob for Main and AUX outputs
- Sealed potentiometers for low noise and long life
- Heavy-duty construction
Item Numbers
GTIN:
0765368201055
UPC:
765368201055
EAN:
0765368201055
UNSPSC:
45111704
