Microphone:
Yes

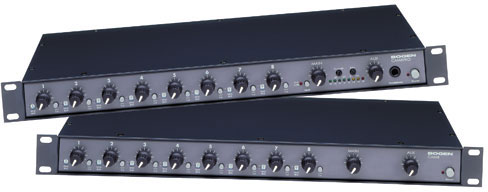

Bogen CAM8 Public Address Equipment
Part Number:
CAM8
Model:
CAM8 Mixer
Bogen CAM8 Mixer Public Address Equipment Model Overview
The CAM8-Series Mixers deliver exceptional studio-quality sound and dual-bus flexibility within a compact and cost-effective design. Ideal for both studio and field applications, the CAM8 offers a straightforward 8-input, 2-channel mixer, while the CAM8PRO enhances your setup with a built-in Compressor/Limiter, adjustable threshold and ratio controls, and a multifunctional LED output meter. With its solid engineering and reliable performance, Bogen's CAM8 Series ensures that you can navigate any audio environment, providing you with years of trouble-free operation.
Key Features
Specifications
Key Features
- 8x2 MIC/Line Mixer
- Dual Bus Design - Independent Main and Auxiliary busses
- Phantom Power - Switchable +15V DC
- Immersive Sound Control - Input Gain/Trim Control with Low-Cut Filter
- CAM8PRO Enhancements - Compressor/Limiter with Threshold and Ratio Controls
- Multi-Function LED Output Meter - Peak or Average output display
Specifications
- Dimensions: 19" W x 6" D x 1-3/4" H
- Signal-to-Noise Ratio: 90 dB
- Max. Voltage Gain: 96 dB
- Frequency Response: 20 Hz to 20 kHz ± 1 dB
- Crosstalk (Adjacent Channels): > -90 dB
- Input Gain/Trim Range: 40 dB
- Low-Cut Filter: 12 dB/octave at 150 Hz
- Internal Adjustments: For built-in features
Bogen CAM8 Public Address Equipment Overview
The Bogen CAM8 and CAM8PRO are 8-input, dual-bus MIC/Line mixers that combine superb performance with a generous array of simple-to-use features in a single-rack space design. Both models feature 8 independently assignable inputs switchable between MIC and Line. Each input has a trim control, a switchable low-cut filter, and a Main/Auxiliary bus output selector. An additional Auxiliary input can be routed to the Main output,AUX output, or both by setting internal jumpers. Phantom Power is provided for condenser microphones.
The CAM8PRO also features a built-in Compressor/Limiter with adjustable Threshold and Ratio Controls. A Bar Graph Output Meter indicates input signal levels. The CAM8PRO also includes a headphone output. Solidly engineered, the Bogen CAM8 and CAM8PRO mixers will provide many years of trouble-free operation.
Interfaces/Ports
Physical Characteristics
Height:
1.8"
Width:
19"
Depth:
6"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
- Dual-bus design with main/AUX output selector for each input
- Switchable phantom power for condenser MIC inputs
- Output level control knob for main and AUX outputs
- Direct bus connection for cascading multiple mixers
- Sealed potentiometers for low noise and long life
- MIC/Line switch for each input and Main output
- Input level control knob for each input
- Pluggable terminal strip connections
- 8 independently assignable inputs
- Gain/Trim control for each input
- Balanced inputs and outputs
- Low cut filter for each input
- Heavy-duty construction
- Separate Auxiliary input
- External power supply
Item Numbers
GTIN:
0765368201031
UPC:
765368201031
EAN:
0765368201031
UNSPSC:
45111704
