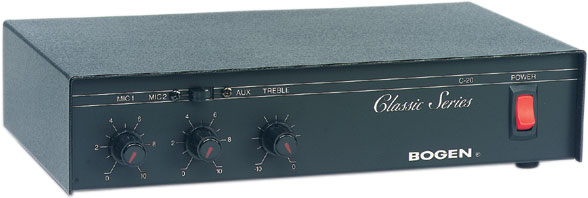

Bogen C20 Public Address Equipment

The Bogen Classic Series Models C10, C20, C10MOH, and C20MOH offer dependable performance and flexibility. The C10 and C10MOH are rated at 10 watts. The C20 and C20MOH are rated at 20 watts. All models are UL and CSA listed. The MOH models provide a music-on-hold output from the Aux input source.This output is unaffected by paging. Screw terminal connections are provided for 600O @ 1 volt and 8O at 1 watt. A level control is also provided on the rear panel. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.

Bogen Models C10 and C20 public address amplifiers are rated at 10 and 20 watts, respectively, and are UL and C-UL listed. The amplifiers accommodate low-impedance microphones and high-impedance auxiliary sources. A front panel selector switch offers a choice of either two low-impedance balanced microphones (MIC1, MIC2), or one microphone and one auxiliary input (MIC1, AUX). The AUX input can be muted when a customer-supplied SPST normally open switch is used for microphone precedence. Independent volume controls and a treble control, for tonal balance, are provided. Balanced and unbalanced outputs are provided for 4-, 8-, and 16-ohm speakers and for 25- and 70-volt constant voltage systems. An accessory transformer, Bogen Model WMT1A, can be installed to provide input and output matching to a telephone line.
