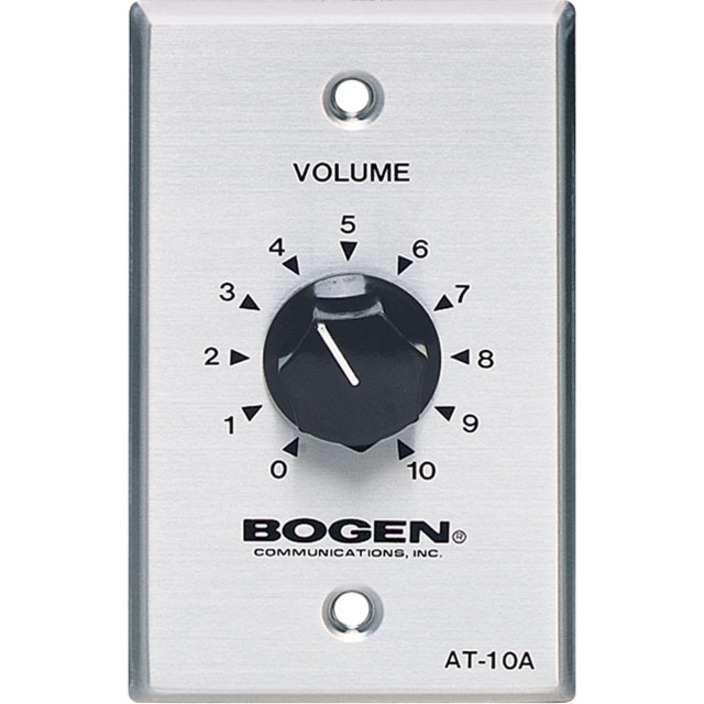

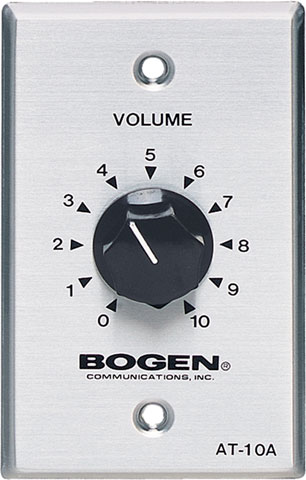

The Bogen AT-Series attenuators are designed to provide precise control over the output levels of 25V and 70V speaker networks from a convenient wall-mounted volume control. Available in two models, the AT10A supports speaker loads of up to 10W, while the AT35A caters to systems up to 35W. Each model features a simple 10-level sound control with an off setting, enabling easy adjustments without altering the overall amplifier volume. Volume reductions occur in 3 dB increments, ensuring smooth and reliable sound management for your audio needs.
The AT-Series of attenuators allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. The AT10A can handle speaker loads of up to 10W and the AT35A can handle speaker loads of up to 35W. Volume reduction takes place in 3 dB increments except for the two lowest settings, which provide 6 dB reduction increments. These rugged attenuators have 10 levels of sound control, plus an off setting.
Full specifications (PDF)
