Bogen ASWG1DK Public Address Equipment

Part Number: ASWG1DK
Model: ASWG1
$47.81

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Frequency Response
100 Hz
Maximum Frequency Response
10 kHz
Impedance
2 Kilo Ohm
Sound Pressure Level
92 dB

Product Description:

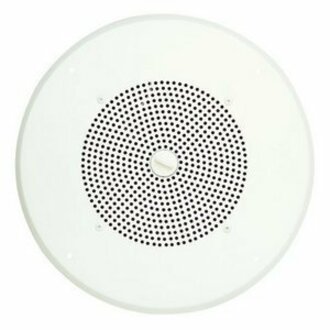

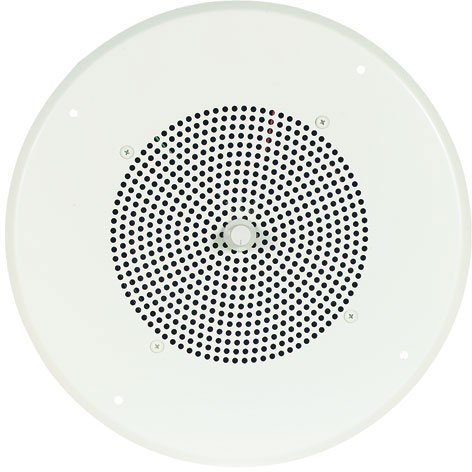

  Bogen ASWG1DK Indoor Ceiling Mountable Speaker - White - 2 Kilo Ohm

Bogen ASWG1 Public Address Equipment Model Overview

Bogen Model AS-1 is an advanced eight-inch cone-type amplified loudspeaker designed for superior telephone paging applications. Featuring a built-in amplifier with an adjustable volume control, the AS-1 delivers excellent sound quality without the need for a centralized amplifier system. Compact and easy to install using standard telephone station wire, this loudspeaker is perfect for small setups where clear communication is essential. With the option to drive multiple units from a single power supply, the AS-1 is an efficient solution for both paging and background music integration.


Key Features:

  • Ideal for telephone-paging systems
  • Self-contained amplifier for cost-efficient small systems
  • Easy installation using standard telephone station wire
  • Built-in volume control for straightforward operation

Specifications:

  • Rated Output: 1 watt
  • Frequency Response: 10Hz to 10kHz
  • Distortion at Rated Output: 1.5% max.
  • Signal to Noise Ratio: -70dB
  • Input Impedance: 1000 ohms
  • Input Sensitivity: 113mV ±4dB
  • Sound Pressure Level: 92dB @ four feet on axis with 1 watt input at 1000Hz
  • Dispersion: 90°
  • Size: 8" cone
  • Volume Control: Outgoing level adjust
  • Supply Voltage Range: 24VDC ±10%
  • Nominal Operating Current: 50mA
  • Idle Current: 20mA
  • Shipping Weight: 2 lbs. (.91 kg)
Bogen ASWG1DK Public Address Equipment Overview

Bogen ASWG1DK is an 8" cone-type loudspeaker, complete with a built-in 1-watt amplifier and volume control. Volume control allows adjustment of the paging level at each speaker location in the system.

Technical Information
Minimum Frequency Response:
100 Hz
Maximum Frequency Response:
10 kHz
Impedance:
2 Kilo Ohm
Sound Pressure Level:
92 dB
Speaker Size:
8"
Physical Characteristics
Product Color:
White
Grill Material:
Steel
Form Factor:
Ceiling Mountable
Speaker Installation:
Indoor
Height:
4.3"
Width:
14.2"
Depth:
14"
Length:
14.8"
Weight (Approximate):
5 lb
Miscellaneous
Application/Usage:
Indoor
Additional Information:
  • Typical Input Sensitivity: 125 mV
  • Built-in Volume Control
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0765368310269, 0803983130753, 0993248979767, 0996592057433
UPC: 765368310269, 803983130753, 993248979767, 996592057433
EAN: 0765368310269, 0803983130753, 0993248979767, 0996592057433
UNSPSC: 52161512
