Bogen ASWB1 Public Address Equipment

Bogen's amplified speaker models AS1, ASWB1, ASWG1, and ASWG1DK deliver superior sound quality with an 8" cone-type loudspeaker and a built-in 1-watt amplifier. These versatile speakers come with adjustable volume control, allowing users to tailor the paging level to their specific needs. Choose from options including unmounted speakers, or fully assembled models in sophisticated wall baffles or stylish ceiling grilles to seamlessly blend with any decor. Perfect for commercial spaces, they provide dependable audio performance with a broad frequency range from 100 Hz to 10 kHz.

• 8" Cone speaker
• Self-contained 1-watt amplifier
• Built-in volume control (detachable knob available on ASWG1DK)
• Available in multiple configurations: unmounted (AS1), wall baffle (ASWB1), ceiling grille (ASWG1), and ceiling grille with detachable knob (ASWG1DK)
• Two-Year Warranty

• Maximum Output: 1W
• Typical Operational Current: 1 CU (50 mA)
• Frequency Response: 100 Hz to 10 kHz
• Input Impedance: 2000 ohms
• Typical Input Sensitivity: 125 mV
• Maximum Sound Pressure Level: 92 dB @ 4 ft on axis with 1W output at 1000 Hz
• Dispersion: 90°
• Supply Voltage Range: 24V DC
• Product Weight: AS1 - 2 lb.; ASWB1 - 8 lb.; ASWG1/ASWG1DK - 5 lb.
• Size ASWB1: 9-1/2" W x 9-1/2" H x 5-1/4" D (top), 4-¼" D (base)

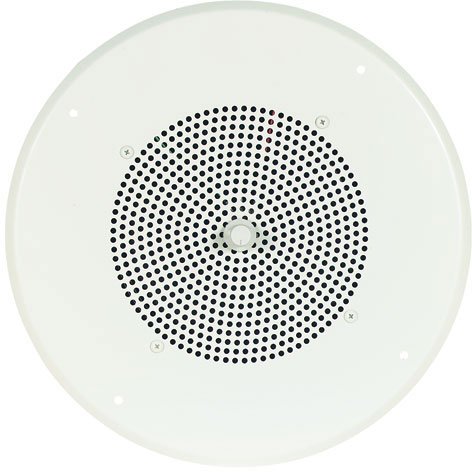

• Size ASWG1/ASWG1DK: 12-7/8" diameter steel ceiling grille
