Full specifications (PDF)
Minimum Frequency Response:
125 Hz
Maximum Frequency Response:
15 kHz
Impedance:
2 Kilo Ohm
Bogen ASM1 Public Address Equipment Model Overview

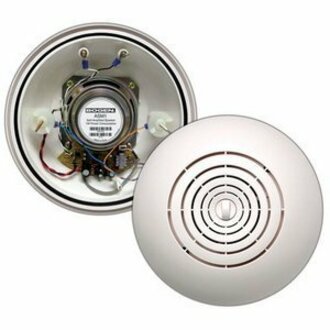

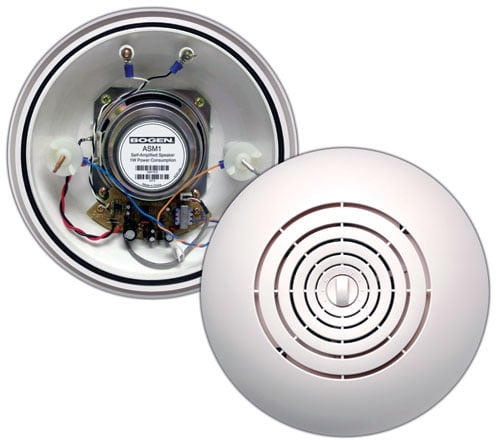

The Bogen ASM1 Amplified Speaker is a surface-mount speaker, designed to typically install in less than a minute. Installation is a simple, three-step process that does not require tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom designed wing nuts secure the speaker to the ceiling. Third, standard wire nuts make the 24V DC power and audio connections directly to the color coded studs. The ASM1 Amplified Speaker is lightweight, durable, and features a lowprofile contemporary design, making it versatile enough to be installed in just about any installation with standard ceiling tiles
Bogen ASM1 Public Address Equipment Overview
The Bogen ASM1 Easy Install Self-Amplified Speaker is a surface-mount speaker, designed to typically install in less than a minute. Installation is a simple, three-step process that does not require tools.
Technical Information
Physical Characteristics
Material:
ABS Plastic Speaker
Form Factor:
Ceiling Mountable
Height:
3"
Width:
10.3"
Depth:
10.3"
Length:
10.3"
Diameter:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
- ASM1 Easy Install Self-Amplified Speaker
- Mounting Hardware
Additional Information:
- Sensitivity: 90 dB
- Input Sensitivity: 125 mVrms
- Controls: Volume (front mounted)
- Base Diameter: 8.75"
Item Numbers
GTIN:
0765368310108, 0818283490766, 0974567648985, 0991428452260
UPC:
765368310108, 818283490766, 974567648985, 991428452260
EAN:
0765368310108, 0818283490766, 0974567648985, 0991428452260
UNSPSC:
52161512
