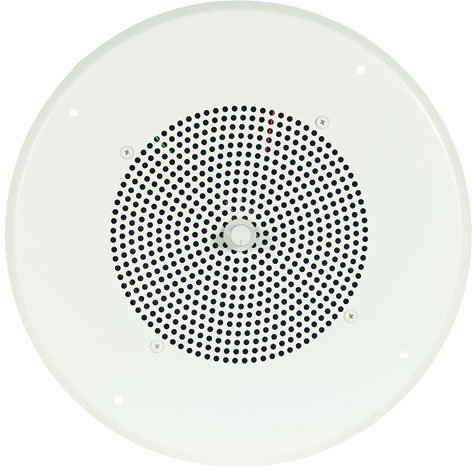

Bogen's amplified speaker models AS1, ASWB1, ASWG1, and ASWG1DK deliver superior sound quality with an 8" cone-type loudspeaker and a built-in 1-watt amplifier. These versatile speakers come with adjustable volume control, allowing users to tailor the paging level to their specific needs. Choose from options including unmounted speakers, or fully assembled models in sophisticated wall baffles or stylish ceiling grilles to seamlessly blend with any decor. Perfect for commercial spaces, they provide dependable audio performance with a broad frequency range from 100 Hz to 10 kHz.
Key Features:
8" Cone speaker
Self-contained 1-watt amplifier
Built-in volume control (detachable knob available on ASWG1DK)
Available in multiple configurations: unmounted (AS1), wall baffle (ASWB1), ceiling grille (ASWG1), and ceiling grille with detachable knob (ASWG1DK)
Two-Year Warranty
Specifications:
Maximum Output: 1W
Typical Operational Current: 1 CU (50 mA)
Frequency Response: 100 Hz to 10 kHz
Input Impedance: 2000 ohms
Typical Input Sensitivity: 125 mV
Maximum Sound Pressure Level: 92 dB @ 4 ft on axis with 1W output at 1000 Hz
The Bogen AS1 Public Address Equipment is also known as
BOG-AS1
