Barrier strip connections for sensor microphone & remote defeat

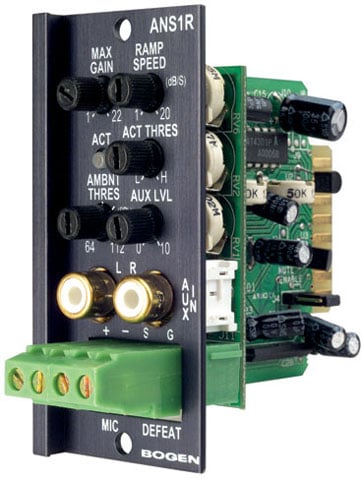

The ANS1R Ambient Noise Sensor from Bogen is an ambient noise sensor module that adjusts the level of a page announcement and/or background music in an area of a building where ambient noise levels are continuously changing. The unit features a ramp speed control that sets the speed by which gain is added to the signal once the ambient noise level surpasses the threshold. The module possesses a 4-pin input barrier strip connector to make the input connection for the microphone and to connect a remote defeat switch. The unit also provides stereo unbalanced RCA inputs that provide 20 k-ohm input impedance.
Physical Characteristics
- Height: 3.1"
- Width: 1.3"
- Depth: 3.5"
- Weight (Approximate): 2.80 oz
Other
- Additional Information:
- Maximum gain control
- Ramp speed control
- Activity threshold control
- Ambient mic input threshold control
- Aux input can bypass gain control function
- Aux level input control
- Stereo unbalanced Aux inputs
- Barrier strip connections for sensor microphone & remote defeat
- Gradual fade back from mute for Aux IN
Full specifications (PDF)
Full specifications (PDF)
Brand |
Bogen |
Model |
ANS1R Ambient Noise Sensor |
