Black Box LPS500A-MM-SC-R3 Transceiver Modules

Part Number: LPS500A-MM-SC-R3
Model:
$505.29

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
2
Network (RJ-45)
Yes
Number of PoE (RJ-45) Ports
1
PoE Port Type
PSE

Product Description:

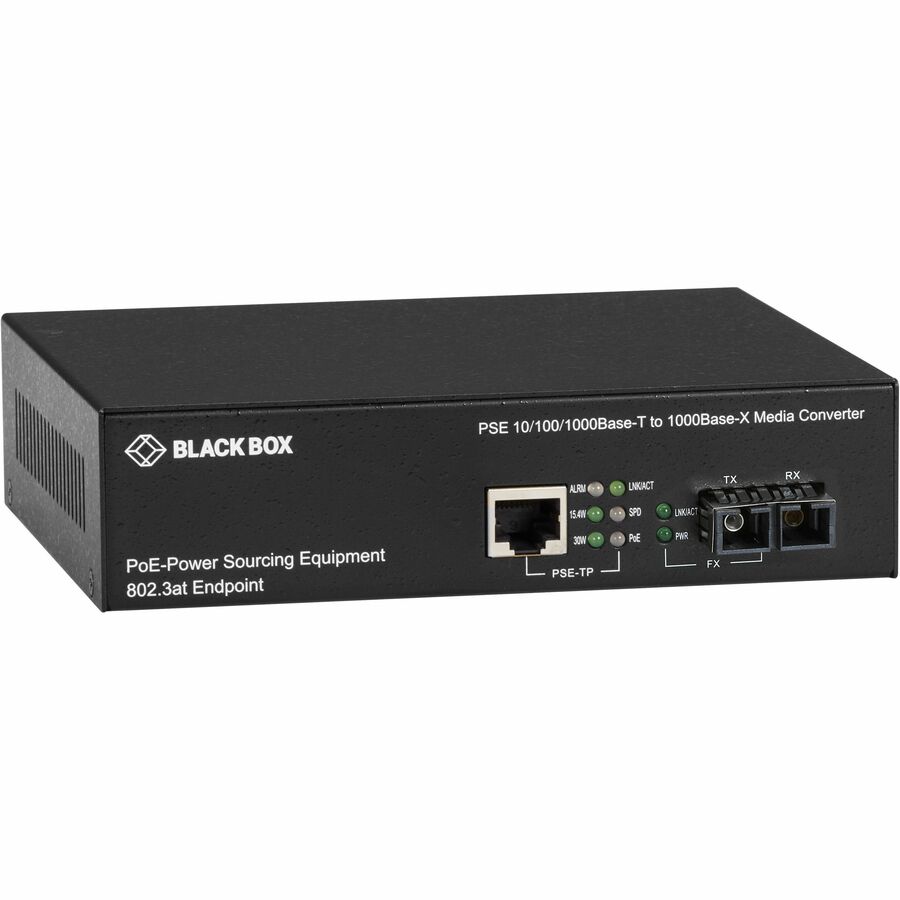

  Transceiver Modules, Black Box, Gigabit Ethernet (1000-Mbps) PoE Media Converter, 10/100/1000-Mbps Copper to 1000-Mbps Multimode Fiber, 850nm, 0.3km, SC
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
PoE Port Type:
PSE
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
850 nm
Maximum Distance Supported:
0.30 km
Fiber Optic Cable Core/Cladding Specification:
  • 62.5 µm
  • 50 µm
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-SX
  • 10/100/1000Base-T
Power Description
Power Source:
Power Supply
Power Consumption:
65 W
Frequency:
63 Hz
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.6"
Width:
6.2"
Depth:
5.2"
Weight (Approximate):
1.30 lb
Miscellaneous
Application/Usage:
Network
Certifications & Standards:
  • CE
  • IEEE 802.3af
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z/ab
  • IEEE 802.3x
  • EN62368
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Additional Warranty Information:

Double Diamond Warranty (Standard)

Item Numbers
GTIN: 0822088150596
UPC: 822088150596
EAN: 0822088150596
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Black Box LPS500A-MM-SC-R3 Transceiver Modules is also known as BLB-LPS500AMMSCR3
