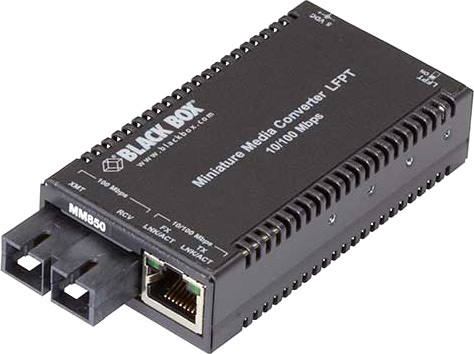

Black Box LHC041A-R4 Accessory

Part Number: LHC041A-R4
Model: Parts
$258.55
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of SC Ports
1

Product Description:

  Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-SX - DIN Rail Mountable - TAA Compliant
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
850 nm
Maximum Distance Supported:
0.50 km
Fiber Optic Cable Core/Cladding Specification:
  • 50/125 µm
  • 62.5/125 µm
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-T
  • 100Base-SX
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Desktop
  • Rack-mountable
Height:
1"
Width:
2"
Depth:
4.7"
Weight (Approximate):
1.20 lb
Miscellaneous
Package Contents:
  • MultiPower Miniature Transceiver/Media Converter
  • AC Power Supply
Application/Usage:
Network
Certifications & Standards:
EN62368
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
6 Year
Additional Warranty Information:

Double Diamond™ Warranty (Standard)

Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

The Double Diamond Warranty is our warranty that protects your Black Box® brand products from accidental damage, including drops, water, and power surges.

The FST ETH MED CONV 10/100Mbps COP to 100Mbps MM FBR 850nm 0.5km SC comes with a standard 6 Year Double Diamond™ Warranty (Standard) warranty already included.

During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

Item Numbers
GTIN: 0822088149088
UPC: 822088149088
EAN: 0822088149088
UNSPSC: 43201553
