Device Type:
Console Server

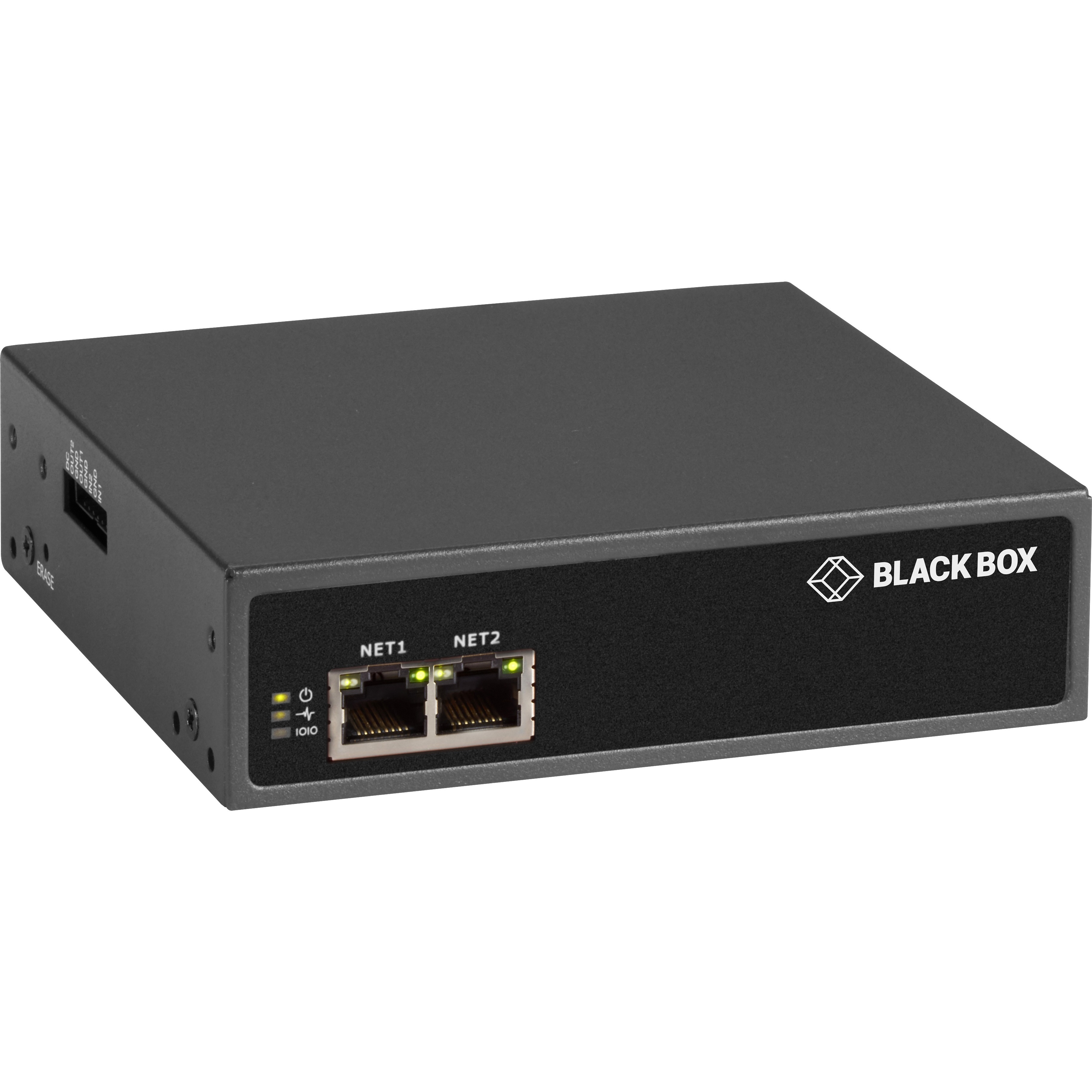

Black Box LES1608A Console & Device Servers
Part Number:
LES1608A
Model:
Parts
Technical Information
Memory
Standard Memory:
256 MB
Memory Technology:
DDR3 SDRAM
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4
Number of Serial Ports:
8
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
- 12 V DC
Physical Characteristics
Height:
5.1"
Width:
4.8"
Depth:
1.4"
Weight (Approximate):
1.30 lb
Miscellaneous
Additional Information:
Serial Port: Cisco straight 50 to 230,400 bps
Security and Authentication: SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers-AES encryption; Cisco-compatible IPsec; AAA-TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPNStorage Temperature: -40 to +167° F (-40 to +75° C)
Power Consumption: Less than 11.5 W
Operating Humidity: 5 to 90%
Console Management: Built-in web terminal, SSH direct to consoles, optional console keystroke logging, alert on cable disconnects, inline power control, multiple concurrent sessions
Security and Authentication: SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers-AES encryption; Cisco-compatible IPsec; AAA-TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPNStorage Temperature: -40 to +167° F (-40 to +75° C)
Power Consumption: Less than 11.5 W
Operating Humidity: 5 to 90%
Console Management: Built-in web terminal, SSH direct to consoles, optional console keystroke logging, alert on cable disconnects, inline power control, multiple concurrent sessions
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
4 Year
Item Numbers
GTIN:
0818275336089, 0818275609084, 0822088130390
UPC:
818275336089, 818275609084, 822088130390
EAN:
0818275336089, 0818275609084, 0822088130390
UNSPSC:
43222625
Get help from a Barcoding Expert!
The Black Box LES1608A Console & Device Servers is also known as
BLB-LES1608A
