Device Type:
Console Server

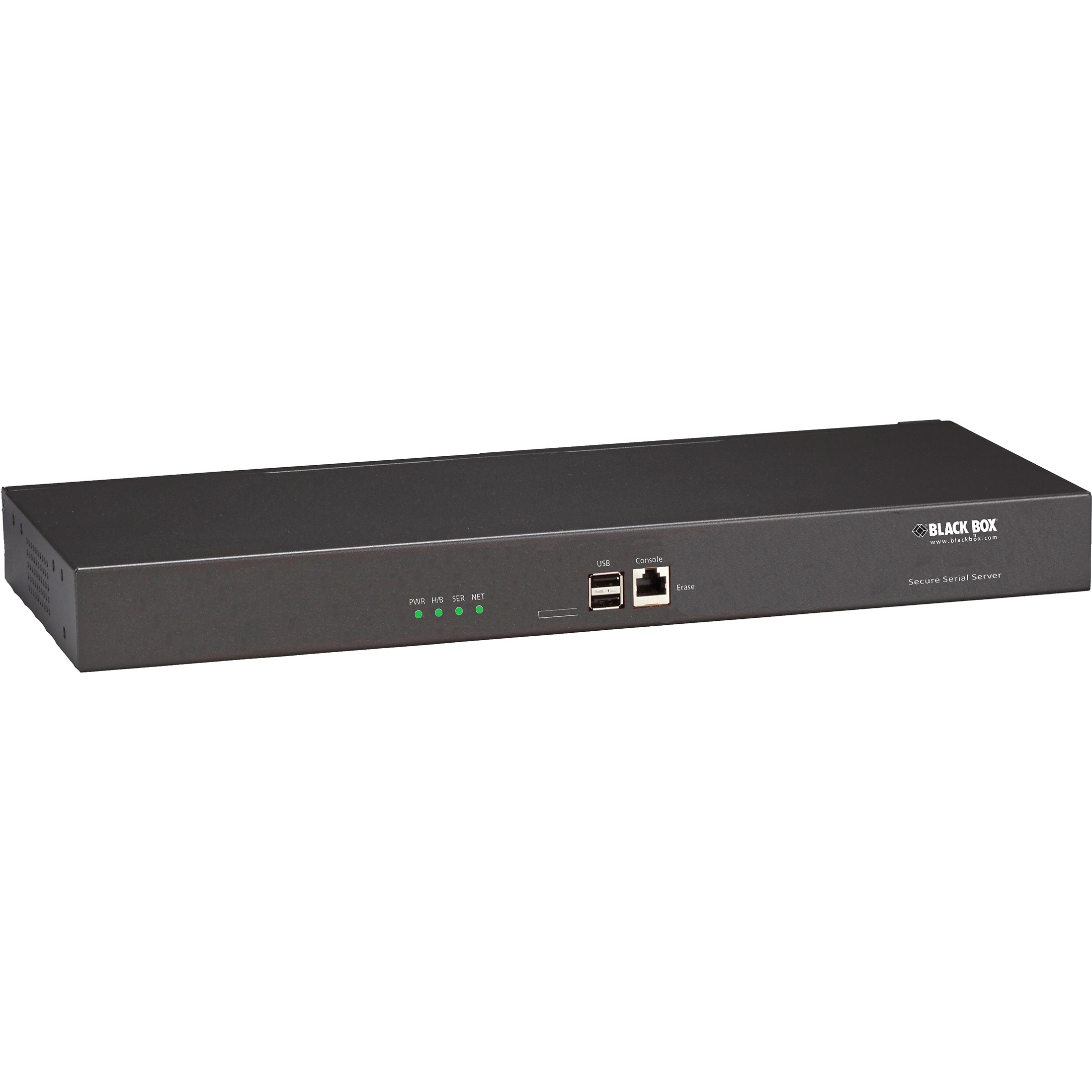

Black Box LES1516A Console & Device Servers
Part Number:
LES1516A
Model:
Parts
Technical Information
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
2
Number of Serial Ports:
16
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17"
Depth:
6.9"
Weight (Approximate):
9 lb
Miscellaneous
Package Contents:
16-Port Secure Serial Server with Cisco Pinout Rackmount brackets and hardware (2) CAT5 cables Cisco connector (DB9 F-to-RJ-45 straight-through and DB9 F-to-RJ-45 crossover) 100-240 VAC internal power supply Quick-start guide
Additional Information:
General
- Approvals CE, UL® 1950, TUV, C-Tick, Security features to support NERC CIP standards, FIPS 140-2 validated module Certificate #1051
- Console Management Built-in web terminal, SSH direct to consoles, optional console keystroke logging, alert on cable disconnects, text pattern match and more, inline power control, multiple concurrent sessions
- Memory 32 MB Flash; 4 GB
- Humidity 5 to 90%
- Operating Humidity 5 to 90%, non-condensing
- Operating temperature 41 to 122° F (5 to 40° C)
- Power AC socket, universal 100-240 VAC
- Power Consumption Less than 30 W
- Security and Authentication SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers-AES encryption; Cisco-compatible IPsec; AAA-TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPN
- Serial Interface RS-232
Product Works With:
- Serial Printer Adapter (RJ-45/DB25 F DCE) for Value Line Console Servers (LES1316A-25FC)
- Modem Adapter (RJ-45/DB25 M DCE) for Value Line Console Servers (LES1316A-25MC)
- Dumb Terminal Adapter (RJ-45/DB25 F DTE) for Value Line Console Servers (LES1316A-25FT)
- Dumb Terminal Adapter (RJ-45/DB25 M DTE) for Value Line Console Servers (LES1316A-25MT)
- Dumb Terminal Adapter (RJ-45/DB9 M DTE) for Value Line Console Servers (LES1316A-9MT)
- PC Adapter (RJ-45/DB9 F DTE) for Value Line Console Servers (LES1316A-9FT)
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
4 Year
Item Numbers
GTIN:
0822088130598
UPC:
822088130598
EAN:
0822088130598
UNSPSC:
43222625
Get help from a Barcoding Expert!
The Black Box LES1516A Console & Device Servers is also known as
BLB-LES1516A
