Black Box LBPS01A-KIT Wireless Switch

Part Number: LBPS01A-KIT
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Height
0.8"
Width
4.7"
Depth
3.5"
Package Contents
1 x VDSL2 PoE Ethernet Extender PSE (PSE Unit) 1 x VDSL2 PoE Ethernet Extender PSE (Standard Unit) 1 x 12V DC, 2A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (PSE Unit) 1 x 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (Standard Unit) 1 x CD Containing the User's Manual

Product Description:

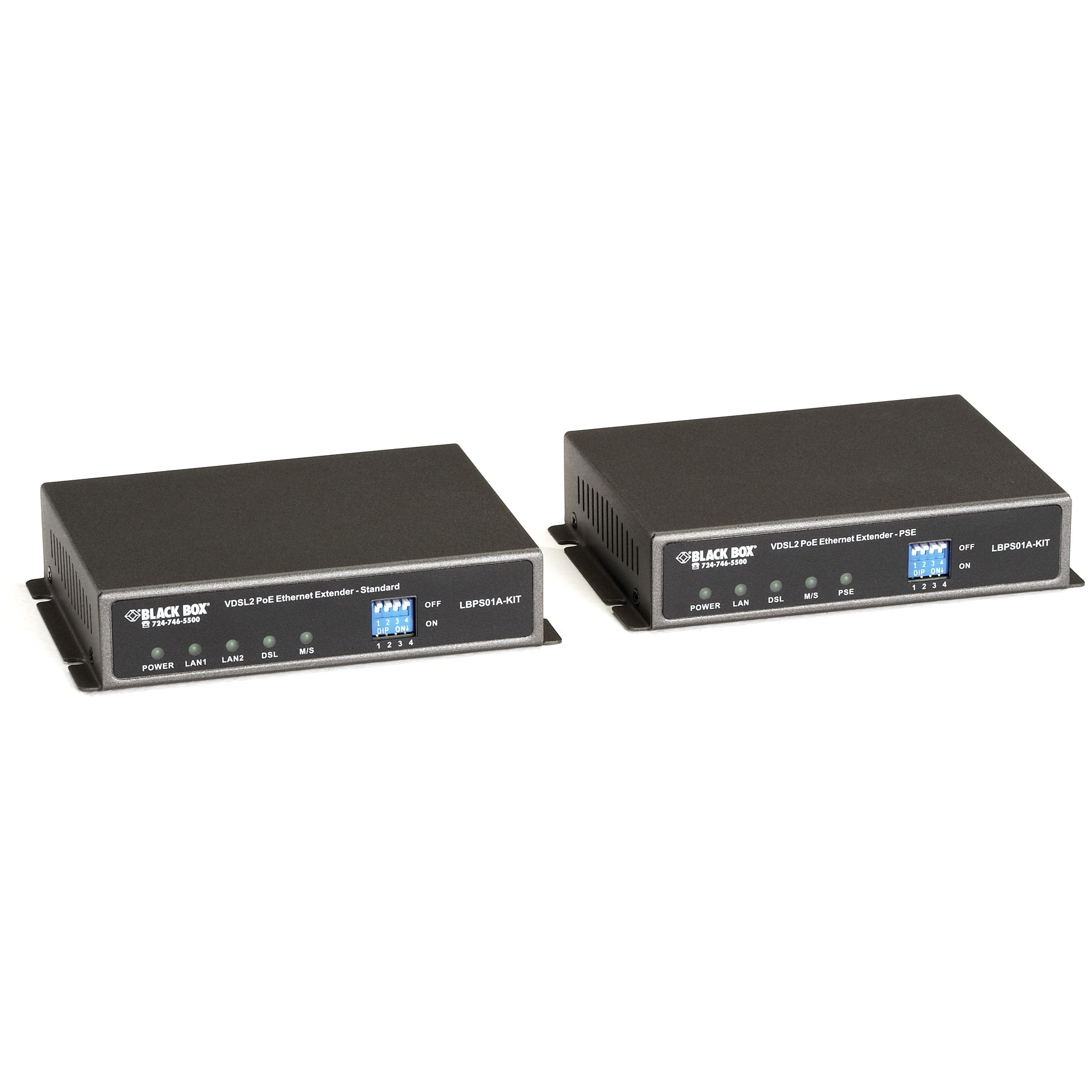

  Black Box VDSL2 PoE/PSE Ethernet Extender Kit
Explore all Black Box Products
Add to Quote
Black Box LBPS01A-KIT Wireless Switch
Black Box LBPS01A-KIT Wireless Switch
Physical Characteristics
Height:
0.8"
Width:
4.7"
Depth:
3.5"
Miscellaneous
Package Contents:
  • 1 x VDSL2 PoE Ethernet Extender PSE (PSE Unit)
  • 1 x VDSL2 PoE Ethernet Extender PSE (Standard Unit)
  • 1 x 12V DC, 2A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (PSE Unit)
  • 1 x 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (Standard Unit)
  • 1 x CD Containing the User's Manual
Additional Information:
  • Kit includes two extenders-one of which acts as PoE power source equipment (PSE), the other is a standard extender.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).
  • Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for master/slave configuration.
  • Low latency for video and voice applications.
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0093007105519, 0641676611925, 0787416074732, 0822088106241
UPC: 093007105519, 641676611925, 787416074732, 822088106241
EAN: 0093007105519, 0641676611925, 0787416074732, 0822088106241
UNSPSC: 43222608
