Network (RJ-45):
Yes

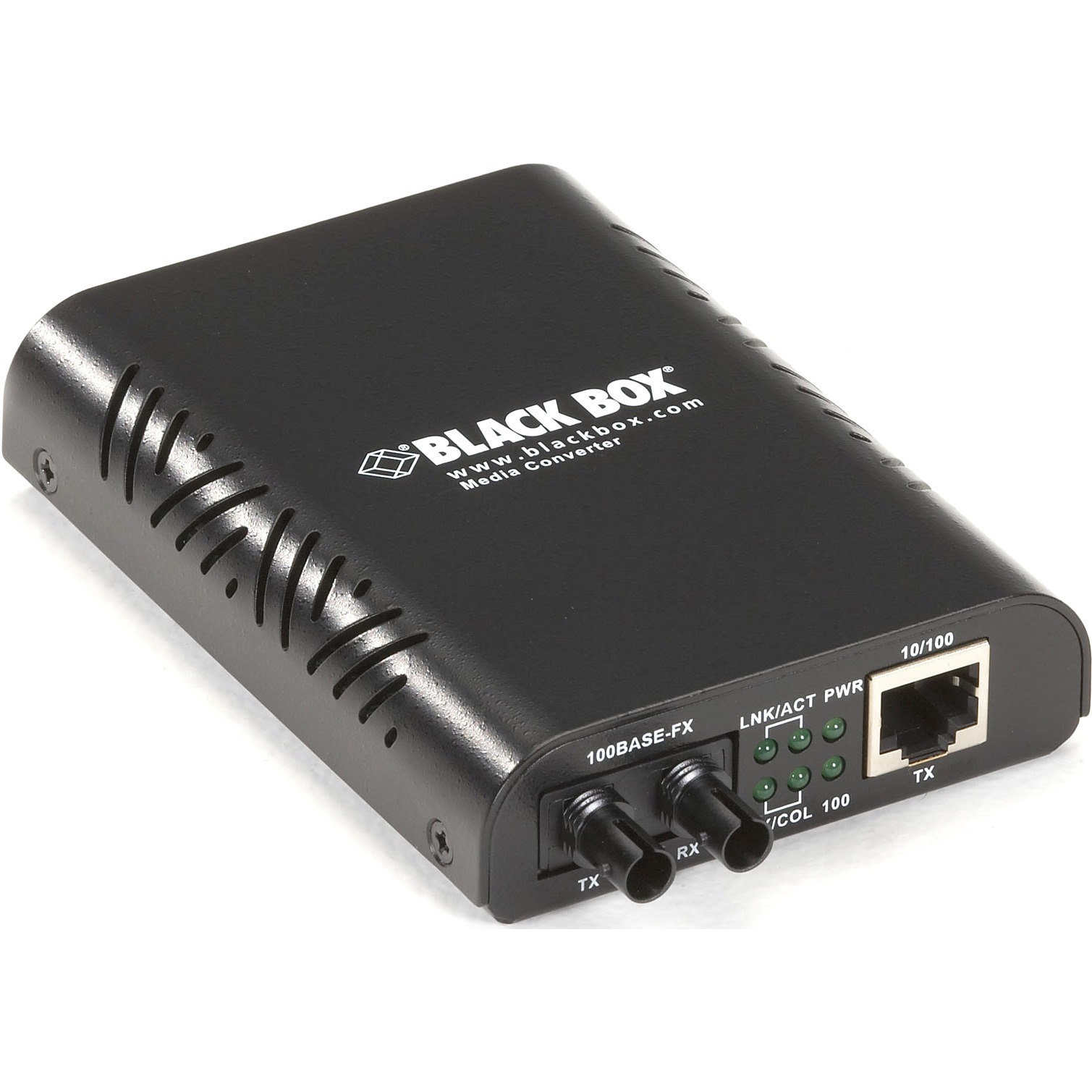

Black Box LBMC300-MMST Transceiver Modules
Part Number:
LBMC300-MMST
Model:
Parts
Interfaces/Ports
Physical Characteristics
Height:
0.9"
Width:
4.3"
Depth:
3.2"
Miscellaneous
Additional Information:
- Environmental Operating temperature: 32 to 113° F (0 to 45° C);
- Storage temperature: 14 to 158° F (-10 to +70° C);
- Operating humidity: 5-95%, noncondensing
- Approvals CE, RoHS
- Connectors (1) pair ST, (1) RJ-45
- Power External 100-240-VAC power supply, 1.92 watts maximum
- Extends your network up to 220 meters (721 ft.) over 850-nm multimode fiber or a full 2 kilometers (1.2 mi.) over 1300-nm multimode fiber.
- Plug-and-play installation.
- Use as a standalone unit or rackmount in the 16-Slot LinkGain Chassis.
- Link Fault Pass Through (LFP) shuts down a link if the other side fails.
- Auto-sensing 10-/100-Mbps copper ports feature MDI/MDI-X.
- Must be used in pairs.
Country of Origin:
Taiwan
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0013269144156, 0700604208634, 0822088106203, 0995476429137
UPC:
013269144156, 700604208634, 822088106203, 995476429137
EAN:
0013269144156, 0700604208634, 0822088106203, 0995476429137
UNSPSC:
43222608
