Black Box ICD102A Products

Part Number: ICD102A
Model: Parts
Add to My Shopping List Add to Compare
$284.95

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Height
0.9"
Width
2.9"
Depth
3.9"
Additional Information
Indicators - ICD102A: (2) LEDs: Data flow directionIsolation - ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;ICD103A: 2000 VDC for 1 minuteOperating Environment - Temperature: -40 to +176° F (-40 to +80° C);Humidity: Up to 95% noncondensingOperation - ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;ICD103A: RS-232: Half- or full-duplexSpeed - ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;ICD103A: Up to 115.2 kbpsSurge Suppression - ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF

Product Description:

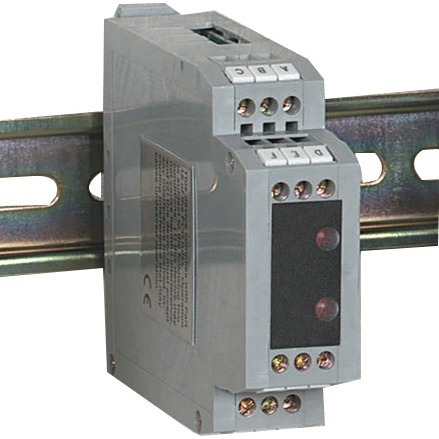

  Black Box DIN Rail Repeaters with Opto-Isolation, RS-422/RS-485
Explore all Black Box Products
Add to Quote
Black Box ICD102A Products
Black Box ICD102A Products
Physical Characteristics
Height:
0.9"
Width:
2.9"
Depth:
3.9"
Miscellaneous
Additional Information:
  • Indicators - ICD102A: (2) LEDs: Data flow direction
  • Isolation - ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;ICD103A: 2000 VDC for 1 minute
  • Operating Environment - Temperature: -40 to +176° F (-40 to +80° C);Humidity: Up to 95% noncondensing
  • Operation - ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
  • ICD103A: RS-232: Half- or full-duplex
  • Speed - ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;ICD103A: Up to 115.2 kbps
  • Surge Suppression - ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF
Certifications & Standards:
CE
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0700604199949, 0822088100560
UPC: 700604199949, 822088100560
EAN: 0700604199949, 0822088100560
UNSPSC: 43222817
