Black Box EVNSL648-0007 Accessory

Part Number: EVNSL648-0007
Model: Parts
Add to My Shopping List Add to Compare
$14.47

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cable Type
Category 6
Cable Characteristic
Patch Cable
Cable Length
7 ft
Connector Type on First End
RJ-45 Network - Male

Product Description:

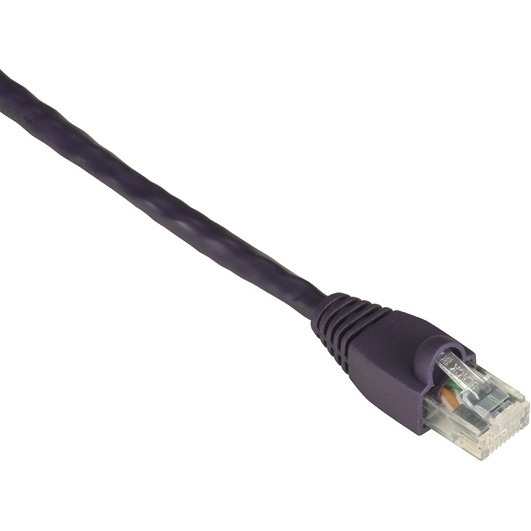

  Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 7ft - Purple
Explore all Black Box Products
Add to Quote
Black Box EVNSL648-0007 Accessory
Black Box EVNSL648-0007 Accessory
Technical Information
Cable Type:
Category 6
Cable Characteristic:
Patch Cable
Cable Length:
7 ft
Connector Type on First End:
RJ-45 Network - Male
Connector on First End Details:
1 x RJ-45 Network - Male
Connector Type on Second End:
RJ-45 Network - Male
Connector on Second End Details:
1 x RJ-45 Network - Male
Contact Plating:
Gold
Conductor:
Copper
Shielding:
No
Jacket Type:
CM
Device Supported:
  • Patch Panel
  • Wallplate
  • Network Device
American Wire Gauge:
24 AWG
Data Transfer Rate:
1 Gbit/s
Boot Type:
Snagless
Features:
  • Stranded
  • Booted
  • Strain Relief
  • Damage Resistant
  • Near End Cross Talk (NEXT)
  • PoE
Physical Characteristics
Color Family:
Purple
Product Color:
Purple
Jacket Material:
Polyvinyl Chloride (PVC)
Shipping Height:
0.50"
Shipping Width:
5.50"
Shipping Weight (Approximate):
3.49 oz
Miscellaneous
Additional Information:
  • Perfect for full broadband and baseband video
  • Full Power Sum performance
  • Provides full-duplex operation
  • Meets balance requirements (LCL/LCTL)
  • Improved attenuation provides cleaner data and video transmissions
  • Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
  • Delay Skew (Maximum): 25 ns/100 m (328 ft.)
  • Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
  • Mutual Capacitance (Maximum): 56 pF/m
  • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
  • PS-ACR: 32 dB (Typical) at 100 MHz
  • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
  • Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
  • Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
  • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

  • 1000BASE-T
  • 100BASE-TX
  • 100BASE-VG
  • 155-Mbps ATM
  • 100-Mbps FDDI/CDDI
Certifications & Standards:

EIA/TIA-568-B.2-1

Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0093007854455, 0641676287694, 0822088038092
UPC: 093007854455, 641676287694, 822088038092
EAN: 0093007854455, 0641676287694, 0822088038092
UNSPSC: 26121609
