Black Box EVNSL641-0050 Products

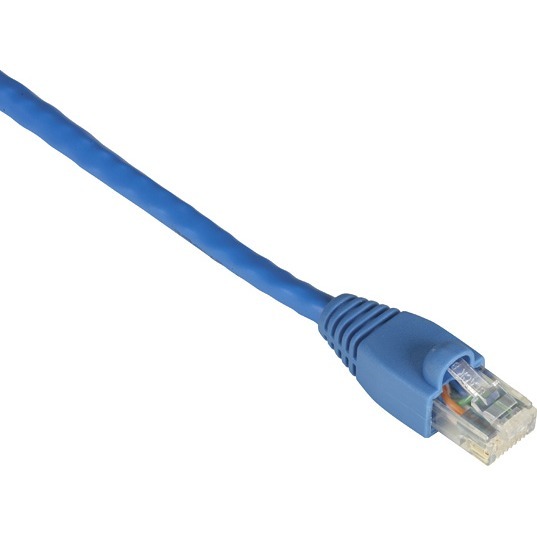

Black Box - Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 50ft - Blue
  • GigaTrue Premium cable constructed to exceed industry standards
  • Cable Tested to 550 MHz, surpassing 250-MHz CAT6 standard
  • Cabling ETL verified to ANSI/TIA-568-C2
  • 50-micron gold-plated contacts provide superior conductivity
  • Connector designed for an insertion and extraction life of 750 cycles
  • This cable offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
  • Snagless boots prevent connector damage due to snags during installation
  • This cable is ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
Read More
$23.49
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Technical Information
Cable Type:
Category 6
Cable Characteristic:
Patch Cable
Cable Length:
50 ft
Connector Type on First End:
RJ-45 Network - Male
Connector on First End Details:
1 x RJ-45 Network - Male
Connector Type on Second End:
RJ-45 Network - Male
Connector on Second End Details:
1 x RJ-45 Network - Male
Contact Plating:
Gold
Conductor:
Copper
Shielding:
No
Jacket Type:
CM
Device Supported:
  • Patch Panel
  • Wallplate
  • Network Device
American Wire Gauge:
24 AWG
Data Transfer Rate:
1 Gbit/s
Boot Type:
Snagless
Features:
  • Stranded
  • Booted
  • Strain Relief
  • Damage Resistant
  • Near End Cross Talk (NEXT)
  • PoE
Physical Characteristics
Product Color:
Blue
Jacket Material:
Polyvinyl Chloride (PVC)
Miscellaneous
Additional Information:
  • Perfect for full broadband and baseband video
  • Full Power Sum performance
  • Provides full-duplex operation
  • Meets balance requirements (LCL/LCTL)
  • Improved attenuation provides cleaner data and video transmissions
  • Attenuation: 23.6 dB at 100 MHz, 39.1 dB at 250 MHz
  • Delay Skew (Maximum): 25 ns/100 m (328 ft.)
  • Impedance: 100 ± 15 ohms at 100 MHz, 100 ± 22 ohms at 100-550 MHz
  • Mutual Capacitance (Maximum): 56 pF/m
  • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
  • PS-ACR: 32 dB (Typical) at 100 MHz
  • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
  • Resistance (Maximum): 9.09 Ohms/100 m (328 ft.)
  • Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz
  • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MHz

Applications:

  • 1000BASE-T
  • 100BASE-TX
  • 100BASE-VG
  • 155-Mbps ATM
  • 100-Mbps FDDI/CDDI
Certifications & Standards:

EIA/TIA-568-B.2-1

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0013269046436, 0093007747542, 0822088036463, 0997857050916
UPC: 013269046436, 093007747542, 822088036463, 997857050916
EAN: 0013269046436, 0093007747542, 0822088036463, 0997857050916
UNSPSC: 26121609
