Black Box C6PC70-BL-02
Black Box C6PC70-BL-02
Black Box -

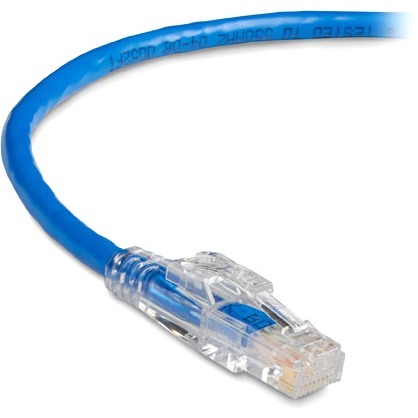

Black Box GigaTrue 3 CAT6 550-MHz Lockable Patch Cable (UTP), Blue, 2-ft. (0.6-m) - 2 ft. Category 6 Network Cable for Network Device - First End: 1 x RJ45 Male Network - Second End: 1 x RJ45 Male Network - Patch Cable - Blue
- Choose between two levels of lockability or use as a standard snagless connector
- GigaTrue 3 Premium Cable exceeds industry standards
- Cable tested to 550 MHz, surpassing 250-MHz CAT6 standard
- Cabling ETL verified to ANSI/TIA-568-C2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- Ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
Need a different version? See all Black Box Partss
$14.70
In Stock
Technical Information
Cable Type:
Category 6
Cable Characteristic:
Patch Cable
Cable Length:
2 ft
Connector on First End:
1 x RJ-45 Male Network
Connector on Second End:
1 x RJ-45 Male Network
Contact Plating:
Gold
Features:
- Stranded
- Snagless
- Lockable
- Booted
- Damage Resistant
- Near End Cross Talk (NEXT)
- Rugged
- PoE
Conductor:
Copper
Shielding:
No
Jacket Type:
CM
Device Supported:
- Patch Panel
- Wallplate
- Network Device
American Wire Gauge:
24 AWG
Data Transfer Rate:
1 Gbit/s
Physical Characteristics
Color:
Blue
Material:
- Polyvinyl Chloride (PVC) - Jacket
- Polymer - Boot
Miscellaneous
Certifications & Standards:
- ANSI/TIA-568-C.2
- ISO/IEC 11801 Class E
- UL
- E196163-Y
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0007540747709, 0013269170131, 0655093907172, 0822088068396, 0995477868706
UPC:
007540747709, 013269170131, 655093907172, 822088068396, 995477868706
EAN:
0007540747709, 0013269170131, 0655093907172, 0822088068396, 0995477868706
UNSPSC:
26121609
The Black Box C6PC70-BL-02 is also known as BLB-C6PC70BL02 or C6PC70BL02 .
