Black Box AVS-HDB-4KO Accessory

The Black Box AVS-HDB-4KO Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

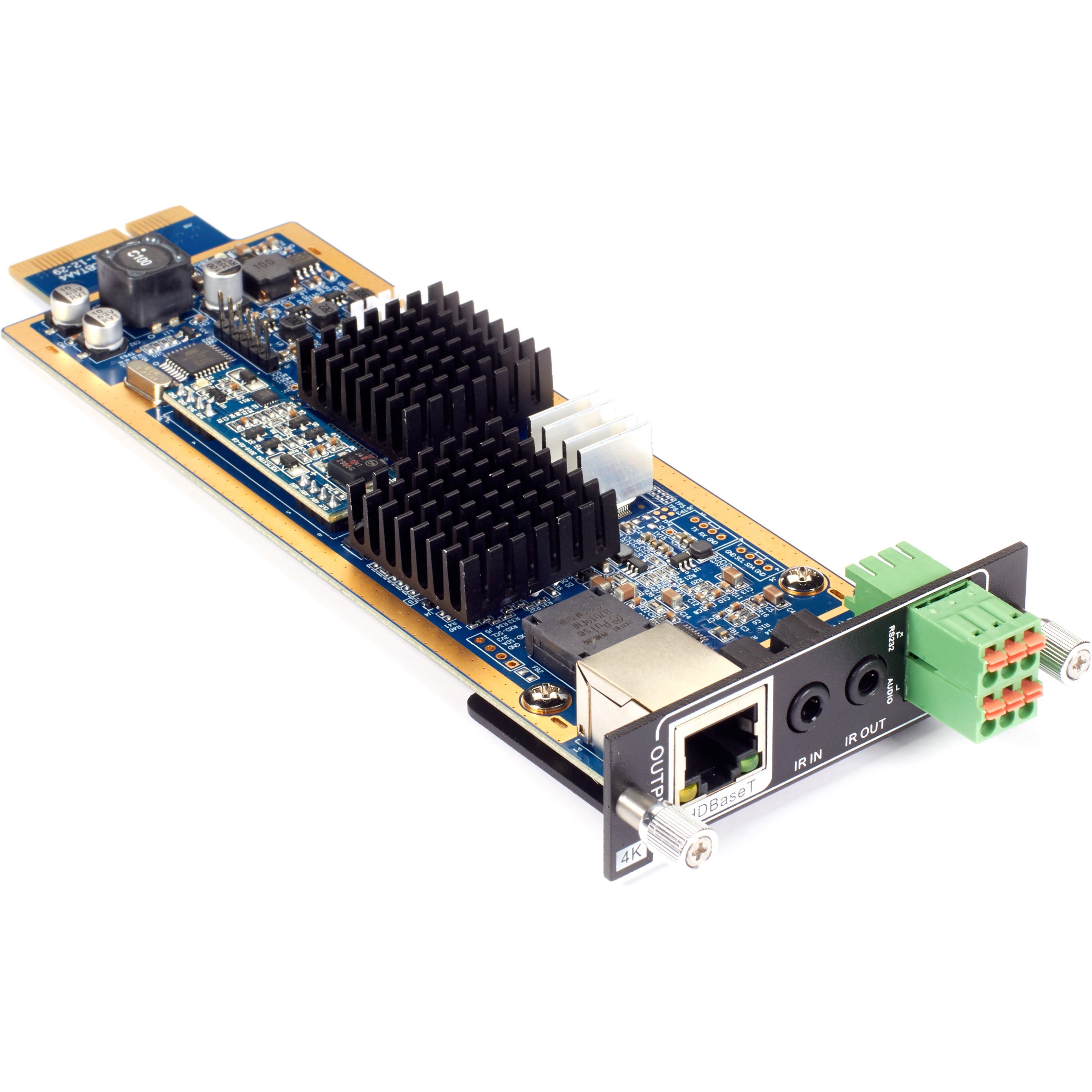

Black Box - Black Box Modular Matrix Switcher Video Output Card HDBaseT 4K Audio - 4.5" Width x 2.8" Height x 9.5" Length - 1

Max resolution: 4K × 2K @ 60 Hz
Adaptive HDCP input and supports HDCP 2.2, the output signal supports HDCP 1.4
Work with HDBT transmitter/receiver to attain long-distance transmission (up to 229 feet [70 meters] via qualified CAT6 cable for 1080P or 131 feet [40 meters] for 4K signal)
Real-time work status indicators: yellow LED blinks once powered on; green LED lights when the port is connected to HDBT devices
HDBT port supports PoE
Input audio source selectable via command or GUI, including HDMI embedded audio (default), and external analog audio
The default output resolution is 4K × 2K @ 30 Hz and it can be adjusted via commands or GUI, supports 4K × 2K @ 60 Hz, 1024 × 768 @ 60 Hz, 1920 × 1080p @ 60 Hz, 1280 × 720 @ 60 Hz
Support bi-directional RS232 control
Support bi-directional IR control, compatible with 5V/12V IR receiver (default: 5V)
Support EDID Management: default EDID is 4K × 2K @ 30 Hz, and DDC communication
