Black Box ACX048-R2 Accessory

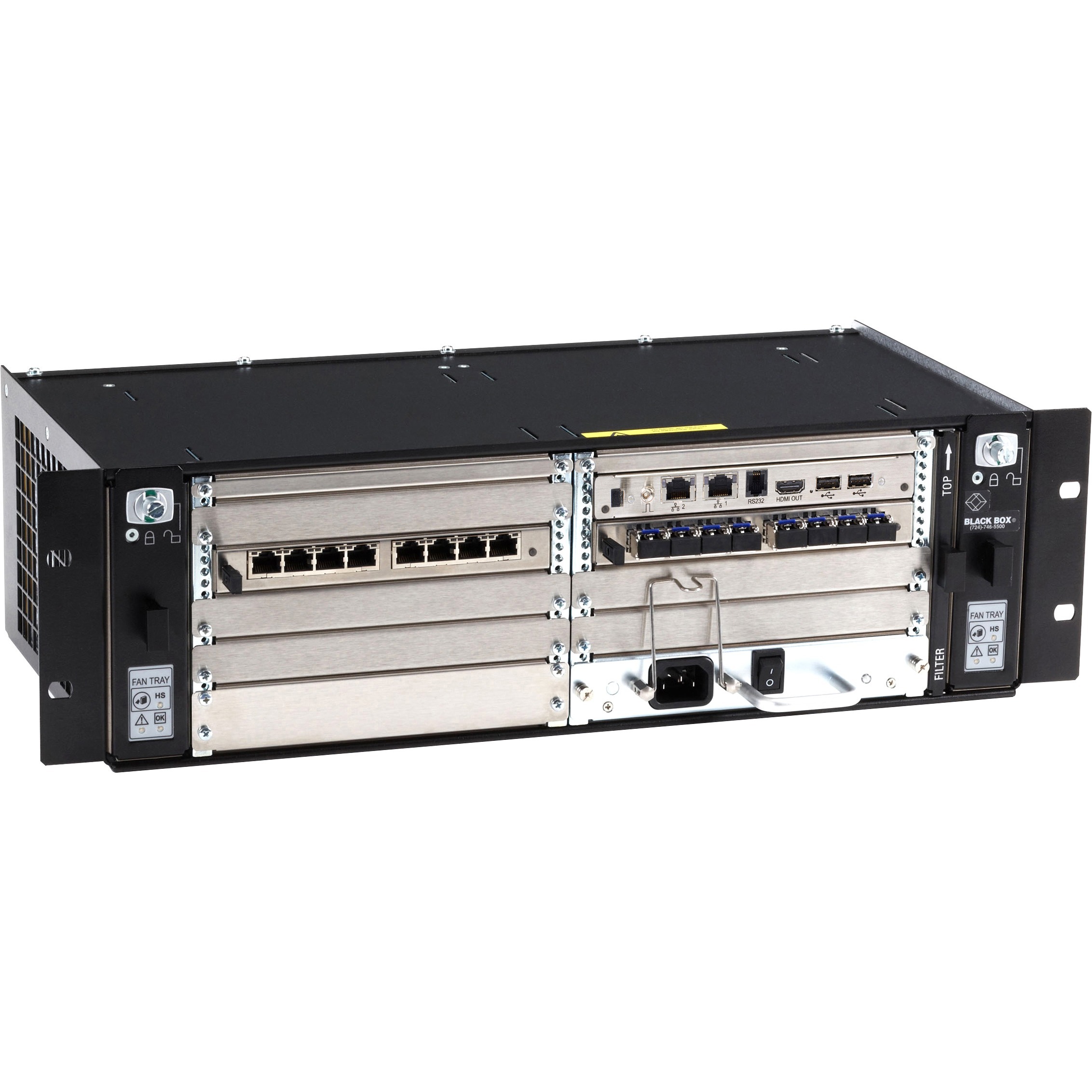

Black Box - 48-Port DKM Chassis Control Card Unpopulated Singular Power Supply
  • Terabit-speed switching backplane.
  • Supports resolutions up to UHD (3840x2160 @ 60Hz) with compatible extenders.
  • Enables mixing of media inputs/outputs-CATx and/or Fiber.
  • Instantaneous video switching - virtually no delay or blanking.
  • Modular, no fixed ports - moves, adds, and changes are quick and easy.
  • Various interface cards available (USB HID/2.0, RS232, and others).
  • Can be used with DKM or DKM FX extenders for extra-long links.
  • Supports rich, digital audio for a full multimedia experience.
  • Rackmountable 4U-high chassis.
  • Choose from CATx and single-mode fiber SFP modular card interfaces. Single-mode fiber interfaces will also work over multimode fiber.
Read More
Please Call for Pricing or to Purchase
In Stock
Video
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
HDMI:
Yes
Number of USB Ports:
2
Number of HDMI Ports:
1
Environmental Conditions
Minimum Operating Temperature:
41°F (5°C)
Maximum Operating Temperature:
113°F (45°C)
Power Description
Input Current:
5 A
Input Voltage:
  • 90 V AC
  • 264 V AC
Input Voltage Range:
100-240 VAC
Frequency:
  • 50 Hz
  • 60 Hz
Power Consumption:
94 W
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
4U
Height:
9.1"
Width:
19"
Depth:
5.3"
Weight (Approximate):
19.60 lb
Miscellaneous
Package Contents:
  • DKM FX HD Video and Peripheral Matrix Switch
  • Controller card
  • 1 x power supply module with power cord
  • 2 x fan trays and an exchangeable filter pad
  • DB9 serial control cable
  • CATx crossover cable
  • Rackmounting hardware
  • CD with user manual and Java application
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
TAA Compliant:
Yes
Item Numbers
GTIN: 0822088148357
UPC: 822088148357
EAN: 0822088148357
UNSPSC: 43211601
