Black Box ACU5502A-R3 Products

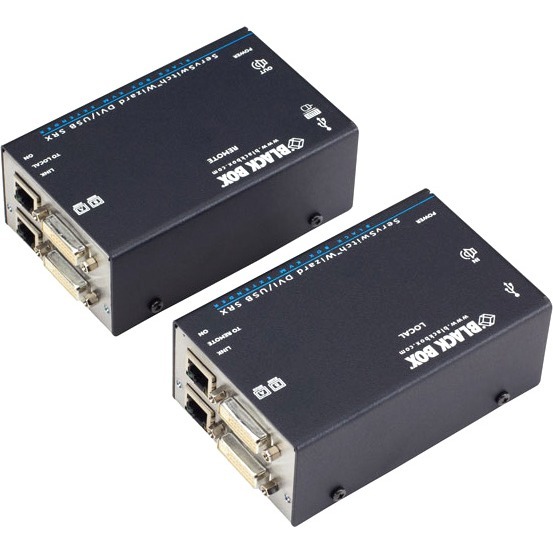

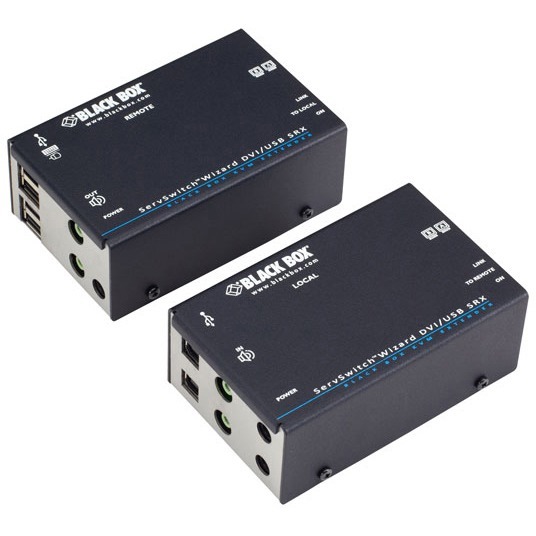

Black Box - Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Dual-Head - 1 Computer(s) - 1 Local User(s) - 196 ft Range - 3840 x 2400 Maximum Video Resolution - 4 x Network (RJ-45) - 6 x USB - 4 x DVI - Rack-mountable
  • Dual Head DVI-D Video Resolution 1920x1200 @60Hz
  • Transparent USB 2.0 supports up to 60 meters
  • Extended profile DDC EDID ensures optimal video with high-performance display devices
  • Delivers bi-directional USB signals
  • (2x) CATx connections
  • Plug-and-play setup and supports Audio
Read More

Need a different version? See all Black Box Parts Products

$2,426.66
Add to Quote
Add to My Shopping List Add to Compare
Black Box ACU5502A-R3 Products
Black Box ACU5502A-R3 Products Black Box ACU5502A-R3 Products Black Box ACU5502A-R3 Products
Black Box ACU5502A-R3 Products
Black Box ACU5502A-R3 Products
Black Box ACU5502A-R3 Products
Technical Information
Connectivity Technology:
Wired
Number of Computers Supported:
1
Number of Local Users Supported:
1
Maximum Operating Distance:
196 ft
Video
Maximum Video Resolution:
3840 x 2400
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
DVI:
Yes
Number of Network (RJ-45) Ports:
4
Number of USB Ports:
6
Number of DVI Ports:
4
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Rack-mountable
Transmitter Height:
2"
Transmitter Width:
3.10"
Transmitter Depth:
5"
Receiver Height:
2"
Receiver Width:
3.10"
Receiver Depth:
5"
Transmitter Weight (Approximate):
4 lb
Receiver Weight (Approximate):
4 lb
Miscellaneous
Package Contents:
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x USB TYPE A/B M/M cable
  • 2 x DVI-D M/M single link cable
  • 1 x 3.5mm Audio Cable(
  • 8 x Rubber Feet
  • 1 x 5 VDC, 2.5A, 12.5W Power Supply
  • 1 x Faceplate for mounting w/ (4) screws per plate
Certifications & Standards:
CE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United Kingdom
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0766796411955, 0822088068341
UPC: 766796411955, 822088068341
EAN: 0766796411955, 0822088068341
UNSPSC: 43211603
