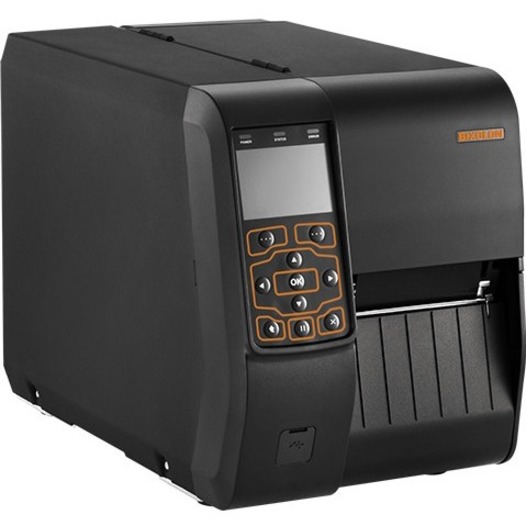

Bixolon XT5-46N – Barcode Label Printer

Part Number: XT5-46NS
Model: XT5-40 Industrial Label Printer
Add to My Shopping List Add to Compare
$1,890.77

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
5 in/s
Maximum Print Resolution (dpi)
600

Product Description:

  Barcode Label Printers, Bixolon XT5-46N, 4" Tabletop Printer, Black, Built In USB, USB Host, Ethernet, Serial, 600 dpi, 5 ips Print Speed, Thermal Transfer, 203 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year
Explore all Bixolon XT5-40 Barcode Label Printers
Add to Quote
Bixolon XT5-46NS Barcode Label Printer
Bixolon XT5-46NS Barcode Label Printer
Bixolon XT5-46NS Barcode Label Printer Bixolon XT5-46NS Barcode Label Printer
Full specifications (PDF)

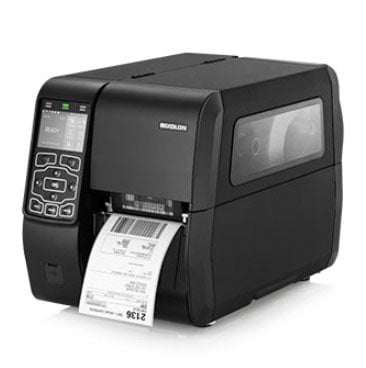

Bixolon XT5-40 Barcode Label Printer Model Overview

The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.


Key Features
  • Print Speed: Up to 14 ips (356 mm/sec)
  • Resolution Options: 203, 300, or 600 dpi
  • Smart Connection: Simple Wi-Fi settings
  • Robust Design: Aluminum body with a space-saving double folding door
  • Easy Maintenance: Toolless maintenance for roller and print head

Specifications
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Width: 104 mm
  • Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
  • Media Roll Diameter: Up to 203 mm
  • Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
  • Weight: 13.98Kg (30.82 lbs.)
  • Power: EnergyStar Certified, 100-120V/200-240V AC
  • Display: 3.5 inch TFT LCD
  • Memory: 512 MB SDRAM, 512 MB Flash
  • Interfaces: USB Serial + Ethernet + 2 USB Host ports
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Length:
39.37"
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF417
  • QR Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar (RSS-14)
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • RFID Encoder
  • Auto-calibration
Optional Connectivity:
  • Parallel
  • Wireless LAN
  • Bluetooth
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 9 BPL-D
  • Two BPL-D
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology:
Thermal Transfer
Memory
Standard Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.49"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BPL-E
  • BPL-D
Power Description
Power Source:
AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
68°F (20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
12.8"
Width:
10.6"
Depth:
19.3"
Weight (Approximate):
30.82 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
  • Android
  • PC
  • iOS
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
