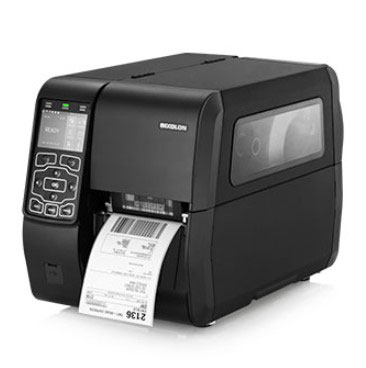

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
What print speeds and resolutions does the Bixolon XT5-43SP support?
The Bixolon XT5-43SP offers print speeds up to 14 inches per second with your choice of 203, 300, or 600 dpi resolution options. This combination of speed and resolution flexibility makes it suitable for both high-volume and high-quality label applications in warehouse and logistics environments. We offer this printer with all three resolution configurations available from us today.
What connectivity options are available on the XT5-43SP?
The XT5-43SP includes multiple connectivity options: Ethernet, USB, Serial, and WiFi for wireless printing. It also features USB Host capability and supports data transfer via USB storage, giving you flexibility in how you integrate this printer into your warehouse or manufacturing workflow. Contact us today to discuss which connectivity setup best fits your operation.
What optional accessories and configurations can I add to this printer?
We offer the XT5-43SP with several optional add-ons including an auto cutter, peeler, rewinder, and combined rewinder and peeler configurations. These accessories allow you to customize the printer to match your specific label finishing requirements in retail, manufacturing, or logistics applications.
What label media types and sizes does the XT5-43SP support?
The XT5-43SP supports multiple media types including gap, black mark, notch, continuous, and fan-fold labels. The printer accommodates label widths up to 4.49 inches and can handle media widths from 20 to 114 mm with roll diameters up to 203 mm, making it versatile for various warehouse and logistics labeling needs.
What is the maximum print length capability of the XT5-43SP?
The XT5-43SP delivers a maximum print length of 98.43 inches, with a print width of 4.16 inches. This extended print length capacity makes it ideal for applications requiring longer labels in warehouse, logistics, and manufacturing environments.
What display and user interface features does this printer include?
The XT5-43SP features a 3.5-inch full color LCD display that provides clear error messaging and an intuitive user interface. The printer also includes a twin function that allows you to copy printer settings and transfer data via USB storage, enhancing operational convenience for your team. Visit barcodesinc.com to learn more about how this printer can streamline your labeling operations.
The Bixolon XT5-43SP Barcode Label Printer is also known as
XT5-43SP
Full specifications (PDF)
