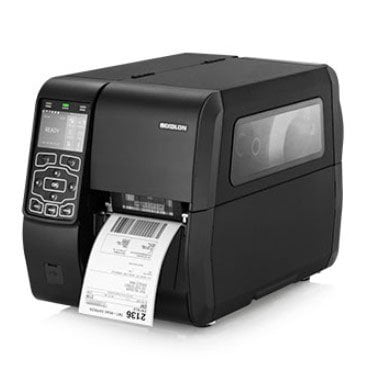

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
What print speeds and resolutions does the Bixolon XT5-43S offer?
The Bixolon XT5-43S delivers print speeds up to 14 inches per second with your choice of 203, 300, or 600 dpi resolution options. This combination of speed and resolution flexibility makes it ideal for warehouse, logistics, manufacturing, and retail applications where label quality and throughput both matter. We offer this printer configured to match your specific performance requirements.
What connectivity options are available on the XT5-43S?
The XT5-43S features multiple connectivity options including Ethernet, USB, and Serial interfaces, plus WiFi capability for wireless operation. These smart connection options allow seamless integration into your existing warehouse or logistics network. Contact us today to discuss which connectivity configuration best suits your deployment.
What label media types does this printer support?
The Bixolon XT5-43S supports gap, black mark, notch, continuous, and fan-fold label formats with media widths from 20 to 114 mm. It accommodates media roll diameters up to 203 mm and thicknesses from 0.06 to 0.25 mm, making it versatile for diverse labeling applications. Visit barcodesinc.com to explore media compatibility options available from us.
What finishing options are available for the XT5-43S?
We offer the Bixolon XT5-43S with multiple finishing configurations including auto cutter, peeler, rewinder, and combined rewinder and peeler options. These accessories enhance workflow efficiency in high-volume warehouse and manufacturing environments. Contact us today to select the finishing option that matches your production needs.
What display and user interface features does the XT5-43S include?
The XT5-43S features a 3.5-inch full color LCD display with clear error messaging and intuitive controls for best-in-class user convenience. It also supports twin function capability to copy printer settings and access data via USB storage. Our team can help you configure the interface settings to optimize your operation.
What ribbon types and sizes are compatible with the XT5-43S?
The XT5-43S accepts wax, wax/resin, and resin ribbon types in widths from 40 to 110 mm, with ribbon lengths up to 450 meters and a standard 25.4 mm core inner diameter. This flexibility allows you to select the optimal ribbon material for your specific label application and durability requirements. Contact us today to discuss ribbon options available from us.
The Bixolon XT5-43S Barcode Label Printer is also known as
XT5-43S
Full specifications (PDF)
