Bixolon XT5-43N – Barcode Label Printer

Part Number: XT5-43N9S
Model: XT5-40 Industrial Label Printer
Add to My Shopping List Add to Compare
$1,698.16
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
10 in/s
Maximum Print Resolution (dpi)
300

Product Description:

  Barcode Label Printers, Bixolon XT5-43N, 4" Tabletop Printer, Black, Rewinder, Built In USB, USB Host, Ethernet, Serial, 300 dpi, 10 ips Print Speed, Thermal Transfer, 203 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year
Explore all Bixolon XT5-40 Barcode Label Printers
Add to Quote
Bixolon XT5-43N9S Barcode Label Printer
Bixolon XT5-43N9S Barcode Label Printer
Bixolon XT5-43N9S Barcode Label Printer Bixolon XT5-43N9S Barcode Label Printer
Full specifications (PDF)

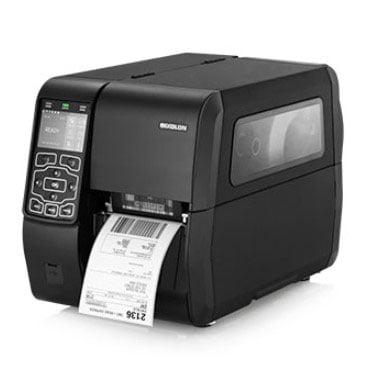

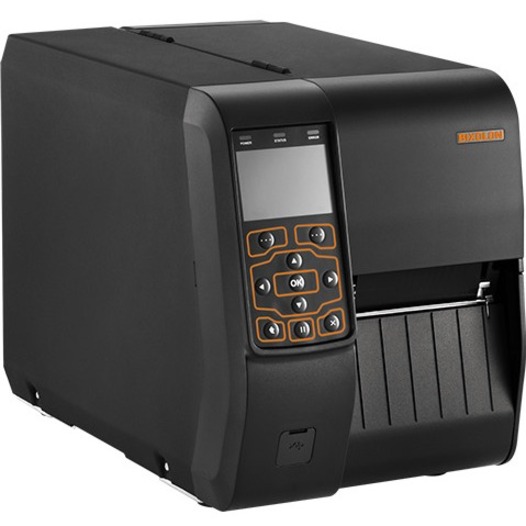

Bixolon XT5-40 Barcode Label Printer Model Overview

The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.


Key Features
  • Print Speed: Up to 14 ips (356 mm/sec)
  • Resolution Options: 203, 300, or 600 dpi
  • Smart Connection: Simple Wi-Fi settings
  • Robust Design: Aluminum body with a space-saving double folding door
  • Easy Maintenance: Toolless maintenance for roller and print head

Specifications
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Width: 104 mm
  • Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
  • Media Roll Diameter: Up to 203 mm
  • Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
  • Weight: 13.98Kg (30.82 lbs.)
  • Power: EnergyStar Certified, 100-120V/200-240V AC
  • Display: 3.5 inch TFT LCD
  • Memory: 512 MB SDRAM, 512 MB Flash
  • Interfaces: USB Serial + Ethernet + 2 USB Host ports
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Length:
98.43"
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF417
  • QR Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar (RSS-14)
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Features:
  • RFID Encoder
  • Auto-calibration
Optional Connectivity:
  • Parallel
  • Wireless LAN
  • Bluetooth
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 9 BPL-D
  • Two BPL-D
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology:
Thermal Transfer
Memory
Standard Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.49"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BPL-E
  • BPL-D
Power Description
Power Source:
AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
68°F (20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
16"
Width:
10.6"
Depth:
19.3"
Weight (Approximate):
39.64 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
  • Android
  • PC
  • iOS
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Printer Accessories (12)

Recommended Accessories for Model: Bixolon XT5-43N9S Barcode Label Printer

Top Printer Accessories Purchased With Bixolon XT5-43N9S

See All Printer Accessories for Bixolon XT5-43N9S Barcode Label Printer >

Frequently Asked Questions

The Bixolon XT5-43N9S delivers printing speeds up to 14 inches per second (ips), making it efficient for high-volume labeling in warehouse and logistics environments. This speed capability helps maximize throughput while maintaining print quality across your operations.

We offer the Bixolon XT5-43N9S with three resolution options: 203 dpi, 300 dpi, and 600 dpi. This flexibility allows you to choose the resolution that best matches your barcode and label quality requirements, from standard warehouse barcodes to high-detail graphics.

The XT5-43N9S features multiple connectivity options including built-in USB, USB Host, Ethernet, and Serial connections, along with WiFi capability. This range of connection methods ensures compatibility with your existing warehouse management systems and network infrastructure.

We offer the XT5-43N9S with several finishing options including an auto cutter, peeler, rewinder, or rewinder and peeler combination. These accessories allow you to customize the printer to match your specific label production workflow and requirements.

Yes, the XT5-43N9S is specifically designed for applications in warehouse, logistics, manufacturing, and retail environments. Its robust aluminum body and powerful performance make it ideal for demanding industrial labeling tasks across these sectors.

The printer features a 3.5-inch full-color LCD display that provides clear error messaging and smart connection capabilities. It also includes a copy printer settings function and USB storage data access, delivering best-in-class user convenience for operators managing label production.

The Bixolon XT5-43N9S Barcode Label Printer is also known as XT5-43N9S
