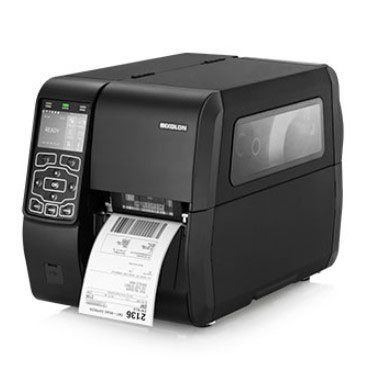

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
What print speeds and resolutions does the Bixolon XT5-43DS support?
The Bixolon XT5-43DS delivers print speeds up to 14 inches per second with your choice of 203, 300, or 600 dpi resolution options. This combination of speed and resolution flexibility makes it ideal for warehouse, logistics, manufacturing, and retail applications where label quality and throughput both matter. We offer this printer configured to match your specific resolution and speed requirements.
What connectivity options are available on the XT5-43DS?
The XT5-43DS includes standard connectivity via Ethernet, USB, and Serial interfaces, with optional WiFi capability for wireless printing environments. The printer also features USB Host functionality, allowing direct data transfer via USB storage devices. Contact us today to discuss which connectivity configuration best fits your warehouse or logistics operation.
What label media types and widths can this printer handle?
The XT5-43DS supports gap, black mark, notch, continuous, and fan-fold label media with widths ranging from 20 to 114 mm and a maximum print width of 4.16 inches. Media thickness tolerance is 0.06 to 0.25 mm, and the printer accommodates roll diameters up to 203 mm. This versatility makes it suitable for diverse labeling applications across warehouse and manufacturing environments.
Does the XT5-43DS offer optional finishing modules like auto-cutters or rewinders?
Yes, the XT5-43DS is available with various optional finishing configurations including auto cutter, peeler, rewinder, and rewinder-with-peeler combinations. These options allow you to automate label finishing workflows based on your specific operational needs. Visit barcodesinc.com or contact us today to configure the right finishing option for your application.
What display and user interface features does the XT5-43DS include?
The XT5-43DS features a 3.5-inch full-color LCD display that provides clear error messaging and intuitive printer control. The printer includes smart connection capabilities with copy printer settings functionality and USB storage data support, delivering best-in-class user convenience for warehouse and logistics teams. These features minimize downtime and simplify printer management in demanding industrial environments.
What ribbon types and capacities are compatible with the XT5-43DS?
The XT5-43DS supports wax, wax/resin, and resin ribbon types in both outside and inside configurations, with ribbon widths from 40 to 110 mm and lengths up to 450 meters. The printer accepts standard 25.4 mm core inner diameter spools, providing flexibility for various label and material combinations. We can help you select the right ribbon type for your thermal transfer printing application.
The Bixolon XT5-43DS Barcode Label Printer is also known as
XT5-43DS
Full specifications (PDF)
