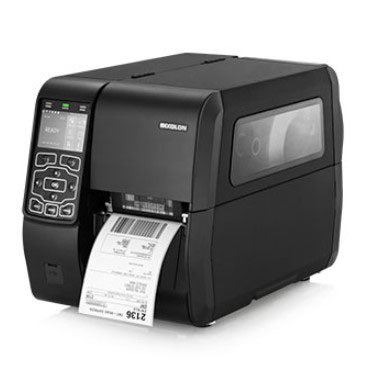

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
What print speeds and resolutions does the Bixolon XT5-43D9S offer?
The Bixolon XT5-43D9S delivers printing speeds up to 14 inches per second with resolution options of 203, 300, or 600 dpi, allowing you to balance speed and print quality based on your labeling requirements. This flexibility makes it suitable for high-volume warehouse and logistics operations where both throughput and barcode readability are critical.
What connectivity options are available on the XT5-43D9S?
The XT5-43D9S supports multiple connectivity options including Ethernet, USB, Serial, and WiFi, giving you flexibility in how you integrate the printer into your warehouse or manufacturing network. USB storage capability also allows you to copy printer settings and transfer data directly without requiring a network connection.
What optional accessories are available for the Bixolon XT5-43D9S?
We offer several optional modules for the XT5-43D9S, including an auto cutter, peeler, rewinder, and combined rewinder/peeler configurations. These accessories enable you to customize the printer for your specific label finishing requirements in retail, manufacturing, and logistics environments.
What label media types and sizes does this printer support?
The XT5-43D9S accommodates gap, black mark, notch, continuous, and fan-fold label formats with a maximum print width of 4.16 inches and up to 98.43 inches of print length. Media width ranges from 20 to 114 mm, making it compatible with standard warehouse and shipping label applications.
What is the display and user interface like on the XT5-43D9S?
The printer features a 3.5-inch full-color LCD display that provides clear error messaging and allows you to copy printer settings directly on the device. This user-friendly interface reduces downtime and simplifies troubleshooting in fast-paced warehouse and manufacturing environments.
Is the XT5-43D9S suitable for industrial warehouse and logistics applications?
Yes, the Bixolon XT5-43D9S is purpose-built for warehouse, logistics, manufacturing, and retail environments with its robust aluminum body design and powerful performance capabilities. Its combination of high print speed, multiple connectivity options, and flexible media handling makes it an ideal choice for demanding AIDC applications. Contact us today to discuss how we can outfit your operation with the right printer configuration.
The Bixolon XT5-43D9S Barcode Label Printer is also known as
XT5-43D9S
Full specifications (PDF)
