Bixolon XT5-40 – Barcode Label Printer – 300 dpi – Cutter
Full specifications (PDF)

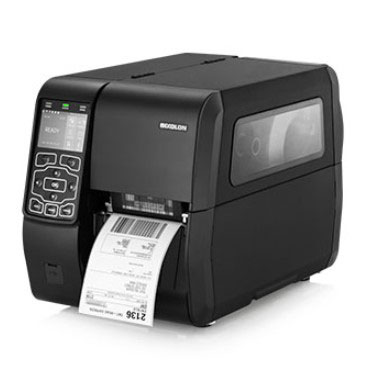

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
- Print Speed: Up to 14 ips (356 mm/sec)
- Resolution Options: 203, 300, or 600 dpi
- Smart Connection: Simple Wi-Fi settings
- Robust Design: Aluminum body with a space-saving double folding door
- Easy Maintenance: Toolless maintenance for roller and print head
- Print Method: Thermal Transfer, Direct Thermal
- Print Width: 104 mm
- Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
- Media Roll Diameter: Up to 203 mm
- Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
- Weight: 13.98Kg (30.82 lbs.)
- Power: EnergyStar Certified, 100-120V/200-240V AC
- Display: 3.5 inch TFT LCD
- Memory: 512 MB SDRAM, 512 MB Flash
- Interfaces: USB Serial + Ethernet + 2 USB Host ports
Recommended Accessories
Category
- Printer Accessories (12)
Recommended Accessories for Model: Bixolon XT5-43CW Barcode Label Printer
Top Printer Accessories Purchased With Bixolon XT5-43CW
-
Bixolon AU04-00033A-AS AccessoryXT5 ASSY-AUTO-CUTTER SCREW-WRENCH-BOLT (1pcs)Item on backorder — chat for lead time$489.74 -
Bixolon KM04-00623A AccessoryXT5 COVER-W-INTERFACE/ Wi-Fi: Wireless 802.11 a/b/g/n wirelessItem on backorder — chat for lead time$309.14
-
Bixolon AP04-00611A-AS AccessoryASSY-PCB-WLAN/ Wi-Fi: Wireless 802.11 a/b/g/n wirelessItem on backorder — chat for lead time$372.12
Frequently Asked Questions
What printing speed does the Bixolon XT5-43CW deliver?
The Bixolon XT5-43CW offers printing speeds up to 14 inches per second (ips), making it efficient for high-volume barcode label production in warehouse and logistics environments. This speed helps maximize throughput while maintaining print quality across your labeling operations.
What resolution options are available for the Bixolon XT5-43CW?
We offer the Bixolon XT5-43CW with three resolution choices: 203, 300, or 600 dpi. This flexibility allows you to select the resolution that best matches your barcode quality requirements and application needs, from standard warehouse labels to detailed retail barcodes.
What connectivity options does the XT5-43CW provide?
The Bixolon XT5-43CW features multiple connectivity options including Ethernet, WiFi, and 2 USB Host ports, along with USB storage capability for data transfer. This range of connection methods ensures compatibility with your existing warehouse and logistics infrastructure.
What finishing options are available with the Bixolon XT5-43CW?
We offer the Bixolon XT5-43CW with various finishing options including an auto cutter, peeler, rewinder, or combination rewinder and peeler. These optional accessories allow you to customize the printer for your specific label production workflow, from basic cutting to full roll management.
Is the Bixolon XT5-43CW suitable for industrial warehouse and manufacturing applications?
Yes, the Bixolon XT5-43CW is specifically designed for industrial applications in warehouse, logistics, manufacturing, and retail environments. Its aluminum body and robust design provide the durability needed for demanding operational settings.
What user interface features does the XT5-43CW include?
The Bixolon XT5-43CW features a 3.5-inch full color LCD display with clear error messaging to support easy operation and troubleshooting. It also includes smart connection capabilities and a twin function feature that allows you to copy printer settings and transfer data via USB storage, enhancing user convenience.
