Bixolon XT5-40 – Barcode Label Printer – 300 dpi – Thermal Transfer

Part Number: XT5-43CS
Model: XT5-40
Add to My Shopping List Add to Compare
$1,789.10

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
300 dpi

Product Description:

  Bixolon Xt5-43 Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 98.43" Print Length - 4.16" Print Width - 10 in/s Mono - 300 dpi - Label, Reflective, Gap, Black Mark, Notch, Continuous Label, Fanfold - 4.49" Label Width
Explore all Bixolon XT5-40 Barcode Label Printers
Add to Quote
Bixolon XT5-43CS Barcode Label Printer
Bixolon XT5-43CS Barcode Label Printer
Full specifications (PDF)

Bixolon XT5-40 Barcode Label Printer Model Overview

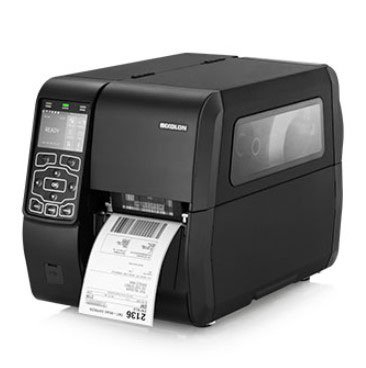

The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.


Key Features
  • Print Speed: Up to 14 ips (356 mm/sec)
  • Resolution Options: 203, 300, or 600 dpi
  • Smart Connection: Simple Wi-Fi settings
  • Robust Design: Aluminum body with a space-saving double folding door
  • Easy Maintenance: Toolless maintenance for roller and print head

Specifications
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Width: 104 mm
  • Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
  • Media Roll Diameter: Up to 203 mm
  • Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
  • Weight: 13.98Kg (30.82 lbs.)
  • Power: EnergyStar Certified, 100-120V/200-240V AC
  • Display: 3.5 inch TFT LCD
  • Memory: 512 MB SDRAM, 512 MB Flash
  • Interfaces: USB Serial + Ethernet + 2 USB Host ports
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Length:
98.43"
Maximum Print Width:
4.16"
Application/Usage:
Industrial
Print Technology:
Thermal Transfer
Memory
Standard Memory:
512 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Cutter
Cutter Life:
1000000 Cuts
Media Types & Handling
Media Type:
  • Label
  • Reflective
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.49"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
12.8"
Width:
10.6"
Depth:
19.3"
Weight (Approximate):
30.82 lb
Miscellaneous
Platform Supported:
  • PC
  • Android
  • iOS
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
