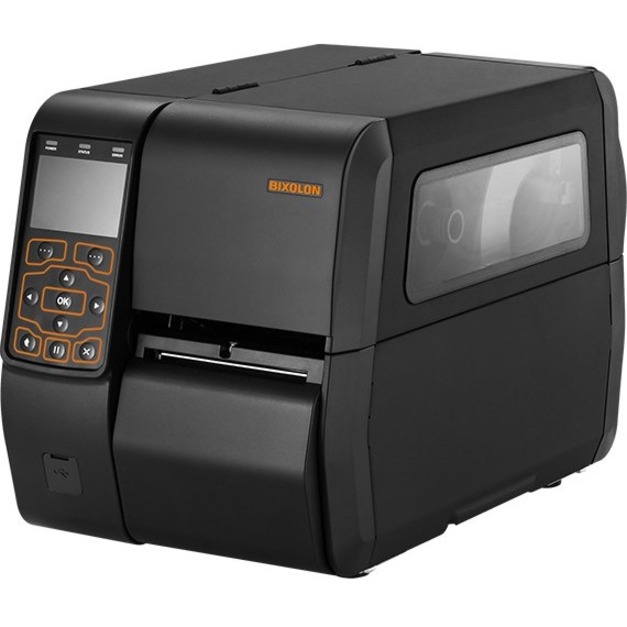

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
Bixolon XT5-40S Barcode Label Printer Overview
Backed by BIXOLON's 2 year warranty guarantee, the award winning XT5-series meets all of your Industrial printing requirements at a price point that is as affordable as the printer is robust. Wired or wireless connectivity, device management tools and resolution choices up to 600 dpi, the XT5-series offers you the smarter Industrial choice to your labelling needs.
What is the maximum print speed of the Bixolon XT5-40S?
The Bixolon XT5-40S delivers printing speeds up to 14 inches per second (ips), making it one of the fastest 4-inch industrial label printers available. This high-speed capability is ideal for high-volume warehouse and logistics operations where throughput is critical. We offer this model to help you maximize productivity in demanding environments.
What resolution options are available for the XT5-40S?
The Bixolon XT5-40S is available in three resolution options: 203 dpi, 300 dpi, or 600 dpi. This flexibility allows you to choose the resolution that best matches your label quality requirements, from standard barcodes to high-detail graphics and text. Contact us today to select the right resolution for your application.
What connectivity options does the XT5-40S support?
The XT5-40S connects via WiFi, Ethernet, USB, and Serial interfaces, providing flexible deployment options for your warehouse or logistics network. It also features USB storage capability for data transfer and twin function settings copy, making it easy to configure multiple printers with identical settings. Visit barcodesinc.com to learn more about integration with your existing systems.
What optional accessories are available for the XT5-40S?
We offer the Bixolon XT5-40S with various optional configurations including auto cutter, peeler, rewinder, and rewinder-peeler combinations. These accessories allow you to customize the printer to match your specific label finishing requirements. Contact us today to discuss which options are best suited for your operation.
What label media types does the XT5-40S support?
The XT5-40S supports multiple media types including gap, black mark, notch, continuous, and fan-fold labels, with a maximum print width of 4.09 inches and print length up to 13.12 feet. This versatility makes it suitable for diverse labeling applications across warehouse, logistics, manufacturing, and retail environments. Our team can help you select compatible media for your specific use case.
Does the XT5-40S have a display screen, and what are its capabilities?
Yes, the XT5-40S features a 3.5-inch full-color LCD display that provides clear error messaging and user-friendly operation. The display enables easy navigation of printer settings and diagnostics, reducing downtime and improving ease of use in busy warehouse environments. Available from us with full technical support to help you maximize the display's functionality.
The Bixolon XT5-40S Barcode Label Printer is also known as
XT5-40S
