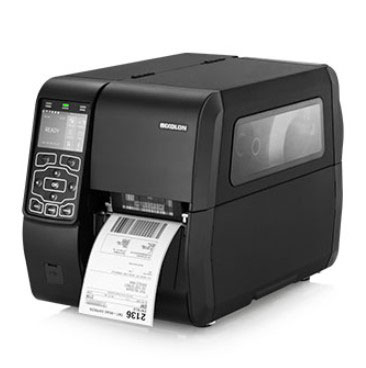

Bixolon XT5-40 – Barcode Label Printer – 203 dpi
Full specifications (PDF)
Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
- Print Speed: Up to 14 ips (356 mm/sec)
- Resolution Options: 203, 300, or 600 dpi
- Smart Connection: Simple Wi-Fi settings
- Robust Design: Aluminum body with a space-saving double folding door
- Easy Maintenance: Toolless maintenance for roller and print head
- Print Method: Thermal Transfer, Direct Thermal
- Print Width: 104 mm
- Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
- Media Roll Diameter: Up to 203 mm
- Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
- Weight: 13.98Kg (30.82 lbs.)
- Power: EnergyStar Certified, 100-120V/200-240V AC
- Display: 3.5 inch TFT LCD
- Memory: 512 MB SDRAM, 512 MB Flash
- Interfaces: USB Serial + Ethernet + 2 USB Host ports
Recommended Accessories
Category
- Printer Accessories (12)
Recommended Accessories for Model: Bixolon XT5-40NRFS Barcode Label Printer
Top Printer Accessories Purchased With Bixolon XT5-40NRFS
-
Bixolon AU04-00033A-AS AccessoryXT5 ASSY-AUTO-CUTTER SCREW-WRENCH-BOLT (1pcs)Item on backorder — chat for lead time$489.74 -
Bixolon KM04-00623A AccessoryXT5 COVER-W-INTERFACE/ Wi-Fi: Wireless 802.11 a/b/g/n wirelessItem on backorder — chat for lead time$309.14
-
Bixolon AP04-00611A-AS AccessoryASSY-PCB-WLAN/ Wi-Fi: Wireless 802.11 a/b/g/n wirelessItem on backorder — chat for lead time$372.12
Frequently Asked Questions
What printing speed does the Bixolon XT5-40NRFS offer?
The Bixolon XT5-40NRFS delivers printing speeds up to 14 inches per second (ips), providing best-in-class performance for high-volume warehouse and logistics operations. This speed enables efficient label production without sacrificing quality across your labeling workflow.
What resolution options are available for the Bixolon XT5-40NRFS?
The XT5-40NRFS offers three resolution options: 203 dpi, 300 dpi, and 600 dpi. This flexibility allows you to choose the resolution that best matches your barcode quality and label detail requirements, from standard barcodes to high-density applications.
What connectivity options does the Bixolon XT5-40NRFS support?
The Bixolon XT5-40NRFS features multiple connectivity options including built-in USB, USB Host, Ethernet, Serial, and WiFi connectivity. This comprehensive connectivity suite ensures seamless integration with your existing warehouse management systems and network infrastructure.
What optional accessories are available for the Bixolon XT5-40NRFS?
The XT5-40NRFS supports various optional accessories including an auto cutter, peeler, rewinder, and combined rewinder and peeler configurations. These options allow you to customize the printer to match your specific label finishing and handling requirements.
Is the Bixolon XT5-40NRFS suitable for warehouse and logistics applications?
Yes, the Bixolon XT5-40NRFS is specifically designed as a 4-inch industrial label printer ideal for warehouse, logistics, manufacturing, and retail applications. Its robust aluminum body and powerful design deliver premium performance in demanding operational environments.
What display features does the Bixolon XT5-40NRFS include?
The XT5-40NRFS features a 3.5-inch full color LCD display with clear error messaging and smart connection capabilities. The display also supports convenient twin function with copy printer settings and data via USB storage for enhanced user convenience.
