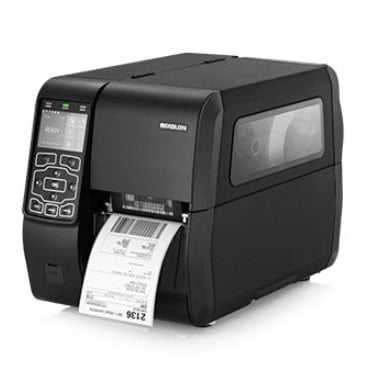

Bixolon XT5-40N – Barcode Label Printer

Name: Bixolon XT5-40NDS Barcode Label Printer
Brand: Bixolon
SKU: 712608
Price: 1224.95 USD
Availability: OutOfStock

Part Number: XT5-40NDS

Model: XT5-40 Industrial Label Printer

$1,224.95

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

14 in/s

Maximum Print Resolution (dpi)

203

Product Description:

Barcode Label Printers, Bixolon XT5-40N, 4" Tabletop Printer, Black, Peeler, Built In USB, USB Host, Ethernet, Serial, 14 ips Print Speed, Thermal Transfer, 203 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year

Explore all Bixolon XT5-40 Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Bixolon XT5-40 Barcode Label Printer Model Overview

The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.

Key Features

Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head

Specifications

Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports

Bixolon XT5-40NDS Barcode Label Printer Overview

With a 4.3 inch full-colour touch display, the XT5-40N supports easy navigation of print settings including checkup of the printer status. Its industry-leading performance, durability and user-friendly design is ideal for Warehouse, Distribution Centres, Manufacturing and T&L Industries.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

14 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Length:

13.12 ft

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
POSTNET
Standard 2 of 5
UPC/EAN
UPC-A
UPC-E
IMB
Aztec Code
Codablock
Code 49
Data Matrix
Maxi Code
PDF417
QR Code
TLC 39
Micro PDF-417
GS1 DataBar (RSS-14)

Real Time Clock:

Yes

Application/Usage:

Desktop

Features:

LCD Display
RFID Encoder
Auto-calibration

Optional Connectivity:

Parallel
Wireless LAN
Bluetooth

Fonts Included:

10 SLCS
One SLCS
16 BPL-Z
One BPL-Z
9 BPL-D
Two BPL-D
5 BPL-E
23 Code Page
Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Print Technology:

Thermal Transfer

Memory

Standard Memory:

512 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Gigabit Ethernet

RFID:

Yes

Display & Graphics

Display Screen:

Yes

Screen Size:

4.3"

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Notch
Continuous Label
Fanfold

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

7.99"

Maximum Label Width:

4.49"

Fonts & Emulation

Language Emulation:

SLCS
BPL-Z
BPL-E
BPL-D

Power Description

Power Source:

AC Supply

Input Voltage:

120 V AC
230 V AC

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

68°F (20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Height:

12.8"

Width:

10.6"

Depth:

19.3"

Weight (Approximate):

30.82 lb

Miscellaneous

Platform Supported:

Android
PC
iOS

Energy Star:

Yes

Item Numbers

UNSPSC: 43212108
