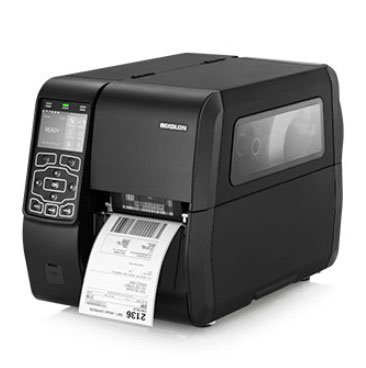

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
Bixolon XT5-40CS Barcode Label Printer Overview
Backed by BIXOLON's 2 year warranty guarantee, the award winning XT5-series meets all of your Industrial printing requirements at a price point that is as affordable as the printer is robust. Wired or wireless connectivity, device management tools and resolution choices up to 600 dpi, the XT5-series offers you the smarter Industrial choice to your labelling needs.
The Bixolon XT5-40CS delivers printing speeds up to 14 inches per second (ips), making it suitable for high-volume warehouse and logistics operations. This speed helps maximize productivity while maintaining label quality across your labeling workflow.
What connectivity options are available on the XT5-40CS?
The XT5-40CS offers multiple connectivity options including Ethernet, USB, Serial, and WiFi, providing flexibility for integration into your existing warehouse or retail network. You can also transfer printer settings and data via USB storage for convenient configuration management.
What resolution options does the Bixolon XT5-40CS support?
The XT5-40CS is available with three resolution options: 203 dpi, 300 dpi, or 600 dpi, allowing you to choose the clarity level that best matches your labeling requirements. Higher resolutions are ideal for detailed barcodes or small text applications.
What finishing options are available for the XT5-40CS?
The Bixolon XT5-40CS offers various finishing options including auto cutter, peeler, rewinder, and combination rewinder and peeler configurations. These options enable you to customize the printer to match your specific label production workflow.
What label formats can the XT5-40CS handle?
The XT5-40CS supports multiple label formats including gap, black mark, notch, continuous, fanfold, and reflective labels, with a maximum print width of 4.09 inches and label width capacity of 4.49 inches. This versatility makes it suitable for diverse warehouse, logistics, manufacturing, and retail applications.
Does the XT5-40CS have a display, and what are its features?
Yes, the XT5-40CS includes a 3.5-inch full color LCD display that provides clear error messaging and user-friendly operation. This display enhances convenience and helps quickly diagnose any printing issues in your workflow.
The Bixolon XT5-40CS Barcode Label Printer is also known as
XT5-40CS
Full specifications (PDF)
