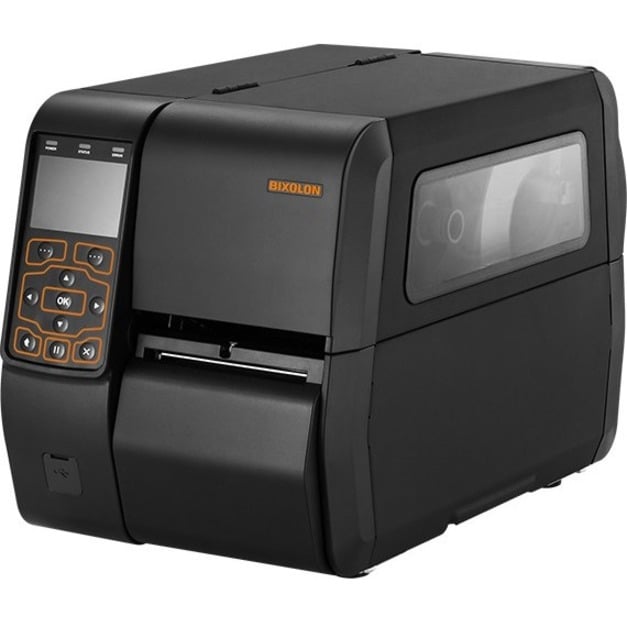

Bixolon XT5-40 Barcode Label Printer Model Overview
The BIXOLON XT5-40 4-inch Thermal Transfer Industrial Label Printer is engineered for premium performance in warehouse, logistics, manufacturing, and retail environments. Boasting a robust aluminum body and a powerful design, this printer achieves an impressive print speed of up to 14 inches per second (356 mm/sec). It offers smart connectivity features, including simple Wi-Fi settings and the industry's fastest Ethernet speeds, ensuring efficient operation. With customizable resolution options and versatile media handling capabilities, this label printer is the ideal solution for businesses requiring high-quality, reliable labeling.
Key Features
Print Speed: Up to 14 ips (356 mm/sec)
Resolution Options: 203, 300, or 600 dpi
Smart Connection: Simple Wi-Fi settings
Robust Design: Aluminum body with a space-saving double folding door
Easy Maintenance: Toolless maintenance for roller and print head
Specifications
Print Method: Thermal Transfer, Direct Thermal
Print Width: 104 mm
Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Roll Diameter: Up to 203 mm
Dimensions: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)
Weight: 13.98Kg (30.82 lbs.)
Power: EnergyStar Certified, 100-120V/200-240V AC
Display: 3.5 inch TFT LCD
Memory: 512 MB SDRAM, 512 MB Flash
Interfaces: USB Serial + Ethernet + 2 USB Host ports
Bixolon XT5-409S Barcode Label Printer Overview
Backed by BIXOLON's 2 year warranty guarantee, the award winning XT5-series meets all of your Industrial printing requirements at a price point that is as affordable as the printer is robust. Wired or wireless connectivity, device management tools and resolution choices up to 600 dpi, the XT5-series offers you the smarter Industrial choice to your labelling needs.
What print speed does the Bixolon XT5-409S deliver?
The Bixolon XT5-409S delivers printing speeds up to 14 inches per second (ips), making it one of the fastest options in its class for high-volume warehouse and logistics applications. This speed helps maximize throughput while maintaining label quality across your operations.
What resolution options are available for the XT5-409S?
The Bixolon XT5-409S is available in three resolution options: 203 dpi, 300 dpi, and 600 dpi. This flexibility allows you to choose the resolution that best matches your label requirements, from standard barcode labels to detailed graphics and small text applications.
What connectivity options does this printer support?
The XT5-409S offers multiple connectivity options including Ethernet, USB, Serial, and WiFi, ensuring seamless integration with your existing warehouse management or inventory systems. The WiFi capability provides wireless flexibility for mobile printing workflows without requiring direct cable connections.
What optional accessories are available for the XT5-409S?
We offer several optional accessories for the XT5-409S including an auto cutter, peeler, rewinder, and a combined rewinder and peeler unit. These options allow you to customize the printer to match your specific label finishing requirements in manufacturing, retail, and logistics environments.
What label formats and sizes can the XT5-409S handle?
The XT5-409S supports a maximum print width of 4.09 inches and can handle multiple label formats including standard labels, reflective labels, gap labels, black mark labels, notch labels, continuous labels, and fanfold labels. The printer accommodates label widths up to 4.49 inches, providing versatility for diverse labeling applications.
What makes the XT5-409S user-friendly for warehouse operations?
The XT5-409S features a 3.5-inch full color LCD display with clear error messaging to help operators quickly diagnose and resolve issues. It also includes smart connection capabilities with WiFi, copy printer settings functionality, and USB storage data transfer, along with an aluminum body design built for robust industrial use in warehouse, logistics, manufacturing, and retail environments.
The Bixolon XT5-409S Barcode Label Printer is also known as
XT5-409S
