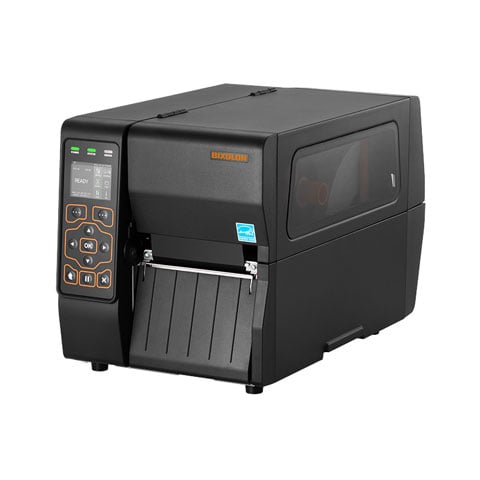

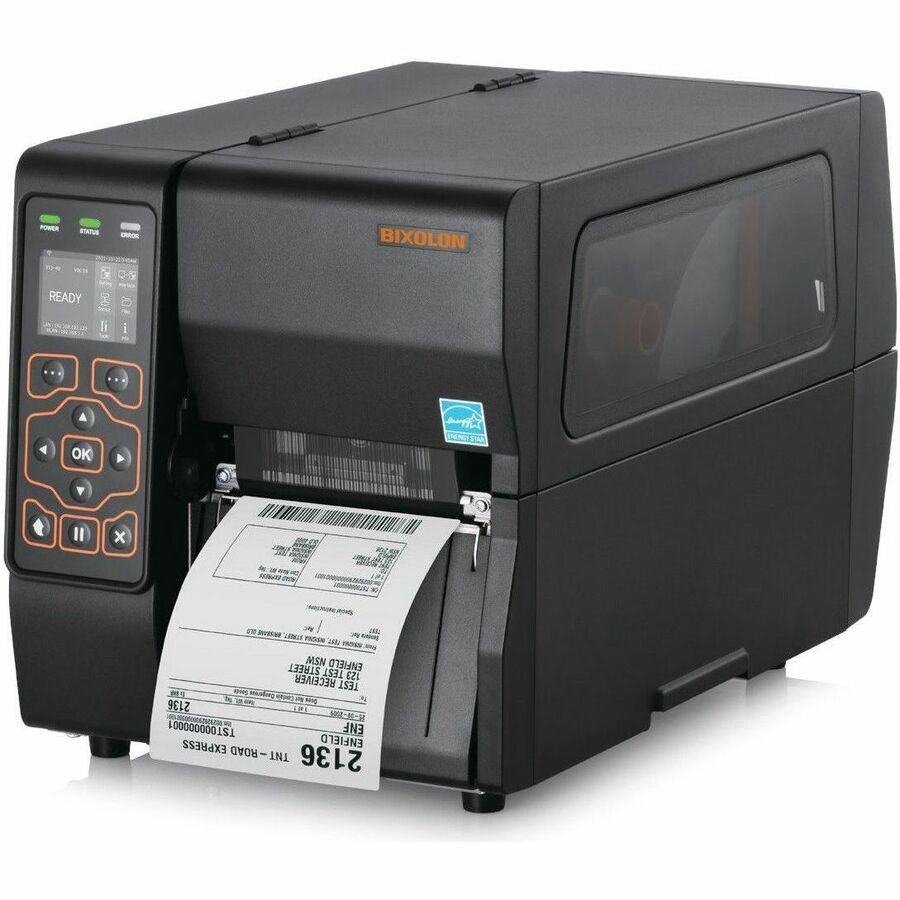

Bixolon XT3-40 – Barcode Label Printer – 203 dpi

Name: Bixolon XT3-40CW Barcode Label Printer
Brand: Bixolon
SKU: 763700
Price: 1164.27 USD
Availability: OutOfStock

Part Number: XT3-40CW

Model: XT3-40

$1,164.27

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Print Resolution

203 dpi

Max Print Width

4 inch

Label Core Size

3 inch

Product Description:

Barcode Label Printer, Bixolon XT3-40, Bixolon, XT3, Black, Built In USB, Ethernet, USB Host, Serial, Wifi, Cutter, 8ips, Thermal Transfer, 203 Dpi, 2.4Inch Color TFT LCD, Power Supply / Us Power Cord, 2 Year Warranty, TPH 1 Year

Explore all Bixolon XT3-40 Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Bixolon XT3-40 Barcode Label Printer Model Overview

The BIXOLON XT3-40 4-inch Thermal Transfer Industrial Label Printer is designed for high-efficiency printing in various industrial applications. This robust label printer delivers fast print speeds of up to 8 inches per second with an impressive print resolution of 203 dpi. Featuring versatile connectivity options, it seamlessly integrates into your existing systems. Built to withstand various operating environments, the XT3-40 is a reliable choice for businesses seeking quality and precision in labeling.

Key Features

Fast Print Speeds: Up to 8 ips (203 mm/sec)
High Print Resolution: 203 dpi for sharp and clear labels
Multiple Media Types: Compatible with gap, black mark, notch, continuous, and fan-fold media
Extensive Connectivity: Options include USB, Serial, Ethernet, Bluetooth, and WLAN
User-Friendly Design: Easy paper loading and a compact form factor

Specifications

Print Method: Thermal Transfer or Direct Thermal
Print Width: Up to 108 mm
Memory: 128 MB SDRAM, 128 MB Flash
Operating Temperature: 5 to 40°C (41 to 104°F)
Humidity: Operating: 10 to 80% RH
Fonts: Bitmap and scalable fonts
Barcode Symbologies: Supports various 1D and 2D barcodes, including QR codes
Dimensions: 240 x 430.5 x 276.7 mm
Weight: 9.3 kg (20.5 lbs.)
Display: 2.4-inch Color TFT LCD

Bixolon XT3-40CW Barcode Label Printer Overview

User-Friendly Design

- Compact and robust design

- Rugged all-metal case and double folding door

- Side-loading supplies path for simplified media and ribbon installation

- 2.4 inch full colour LCD display

- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options

- Toolless maintenance of roller and print head

- Supporting up to 450 m ribbon length

Industrial-Standard Performance

- Fast data processing and print speeds of up to 8 ips (203 mm/sec)

- Optional 203 or 300 dpi high resolutions

- Fully compatible with market-leading programming languages

- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)

Secure and Efficient Management

- Twin funtion™ supported: Copy printer settings and data via USB

- Compatible with label design software; BIXOLON's Label Artist™ and Seagull's BarTender®

- XPM™ & XCM™ - Web-based printer management software and connection app

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

7.99 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Length:

13.12 ft

Maximum Print Width:

4.25"

Barcode Symbology Supported:

QR Code
PDF417
Maxi Code
GS1 DataBar
Data Matrix
Aztec Code
EAN-8
EAN-13
ITF
UPC-A
UPC-E
Code 128
Code 39
Code 93
Codabar
Code 11
Industrial 2 of 5
LOGMARS
MSA
Plessey
POSTNET
GS1 DataBar (RSS-14)
IMB
TLC 39
Code 49
AZTEC
UPC/EAN
Interleaved 2 of 5

Real Time Clock:

Yes

Application/Usage:

Government
Manufacturing
Warehouse
Logistic
Industrial

Features:

Compact
Rugged
Robust
Premium Performance
Twin Function

Connectivity Technology:

Wired & Wireless

Fonts Included:

10 SLCS
UTF-8
UTF-16LE
UTF-16BE
1 BPL-Z
1 SLCS
5 BPL-E
16 BPL-Z

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

128 MB

Flash Memory:

128 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Bluetooth Version:

5.2

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Wi-Fi Direct:

Yes

Near Field Communication (NFC):

Yes

Display & Graphics

Display Screen:

Yes

Screen Size:

2.4"

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Continuous Label
Notch

Media Sensor:

Head Open Sensor
Reflective Media Sensor
Transmissive Media Sensor
Ribbon Low/End Sensor

Media Thickness:

9.84 mil

Maximum Roll Diameter:

7.99"

Maximum Label Width:

4.49"

Fonts & Emulation

Language Emulation:

BPL-E
BPL-Z
SLCS

Power Description

Power Source:

Power Adapter
AC

Frequency:

60 Hz
50 Hz

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Height:

10.9"

Width:

9.4"

Depth:

16.9"

Weight (Approximate):

20.50 lb

Miscellaneous

Package Contents:

XT3-40 4-inch Thermal Transfer Industrial Label Printer
USB Cable

Cables Included:

USB

Platform Supported:

Android
PC
iOS

Energy Star:

Yes

Item Numbers

UNSPSC: 43212108
